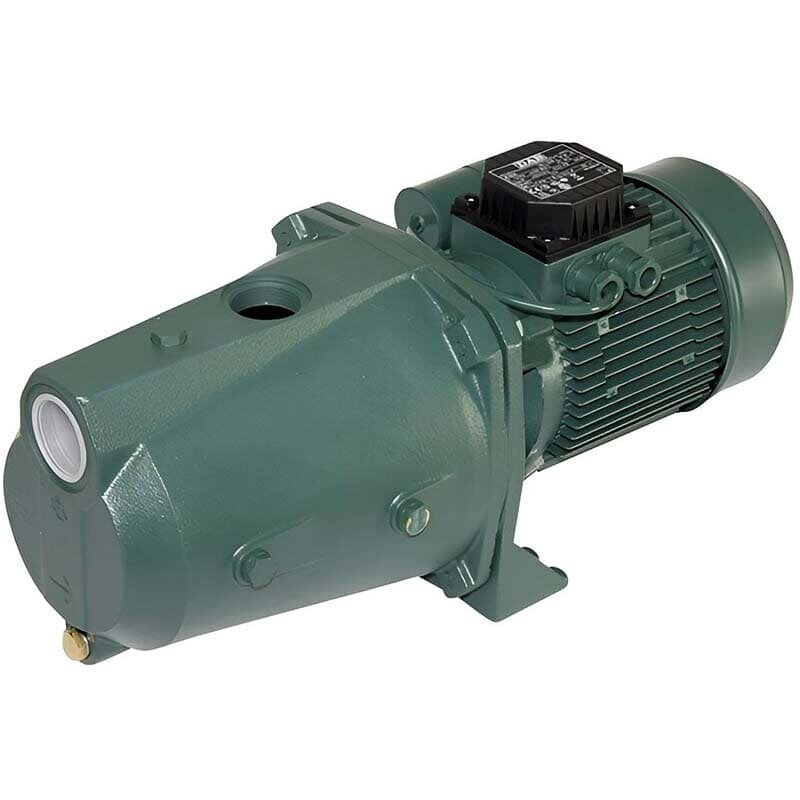

DAB JET is a self-priming centrifugal pump suitable for water supply in domestic systems, small farms, horticulture and in general in cases where self-priming is required even in the presence of air bubbles.
Jet: pump housing made of cast iron.
TECHNICAL DATA:
Operating range: from 0.4 to 10.5 m³/h at a head of up to 62 m.
Liquid temperature range: from 0 °C to +40 °C.
Pumped liquid: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallized and chemically neutral.
Maximum ambient temperature: +40 °C.
Maximum operating pressure:
6 bar (600 kPa) for Jet and Jet Com.
8 bar (800 kPa) for Jet Inox and Jet 200, 300, 151, 251.
Degree of protection: IP44 (IP55 on the terminal box).
Insulation class: F.
Cast iron motor support, technopolymer impeller, diffuser, venturi and sand protection. Stainless steel sealing rings. Carbon/ceramic mechanical seal.
Jet: cast iron pump housing.
Water quality: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallised and chemically neutral.
