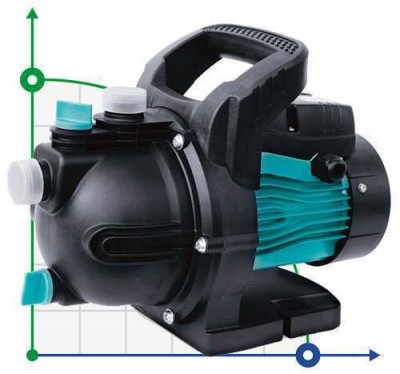

Pumps of this series are designed for pumping clean water, can be used for domestic water supply, auxiliary equipment, lifting water in low-pressure pipelines, irrigation systems of gardens and vegetable gardens, greenhouses and greenhouses, automatic water supply together with small tanks when using Control Automation (Control relays, pressure controllers). Installation of the equipment must be carried out in places protected from atmospheric influence and moisture.
Pump part Housing: technopolymer impeller: technopolymer motor shaft: Aisi 304 stainless steel
Electric motor
Motor type: asynchronous, closed type, air-cooled, with integrated thermal protection in the winding bearing: rolling (C & U) voltage: 220 – 240 V frequency: 50 Hz insulation Class: F protection class: IPX4 cable length: 1.5 m
Terms of use
Maximum ambient temperature: + 40 C maximum liquid temperature: + 35 C maximum pressure in the pump working Chamber: up to 7 bar maximum suction height: up to 8 m only for clean water without impurities containing abrasive (sand, clay, lime, etc.) hydrogen index of water (pH): 6.5 – 8.5 total salinity of water: no more than 1500 g / Mi warranty period: 12 months
