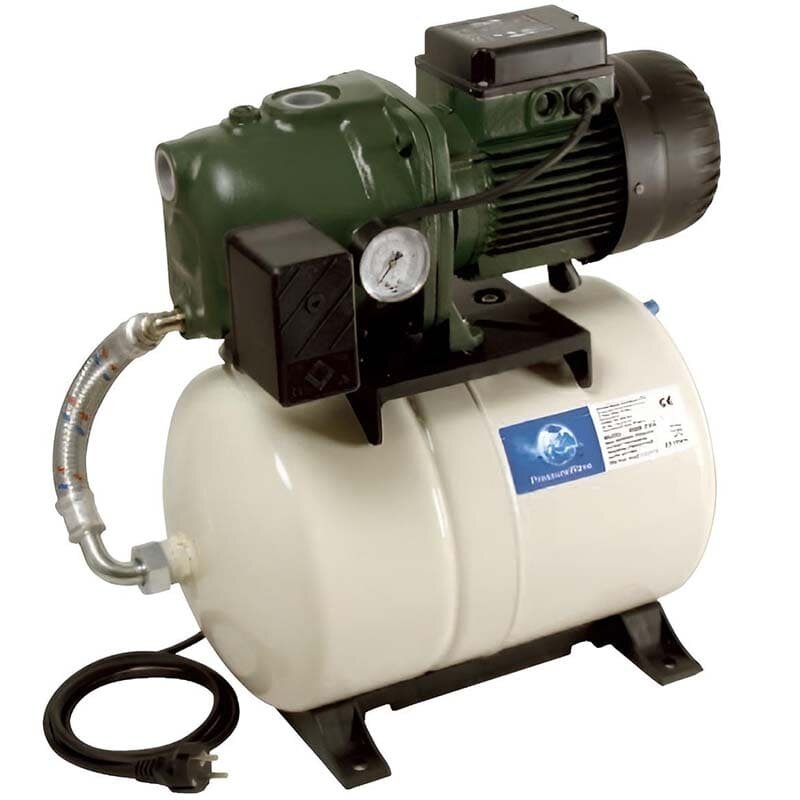

DAB AQUAJET automatic pumping station.
Automatic water lifting units suitable for domestic, civil, agricultural, industrial, laundry and hobby use.
The unit is equipped with a self-priming electric pump type JET, which can operate even if the water contains air, gas and a small amount of sand.
The set consists of a 20 liter membrane tank, a pressure switch for automatic operation, a pressure gauge, a JET electric pump complete with power cable and plug, a set for connecting the pump and the tank, all assembled and ready for installation.
Liquid quality requirements: clean, free of solid particles or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water.
TECHNICAL DATA:
Operating range: up to 5.4 m³/h with a head of up to 61 meters.
Liquid quality requirements: clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water.
Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41).
from 0°C to +40°C for other purposes.
Maximum ambient temperature: +40°C.
Maximum operating pressure: 8 bar (800 kPa).
Installation. fixed in horizontal position.
Closed asynchronous motor with external cooling.
Motor protection: IP44.
Terminal box protection: IP55.
Insulation class: F.
Horizontal type, capacity 20 liters, with butyl diaphragm, complete with feet at the bottom and brackets for mounting the pump at the top.
Water quality: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallized and chemically neutral.
