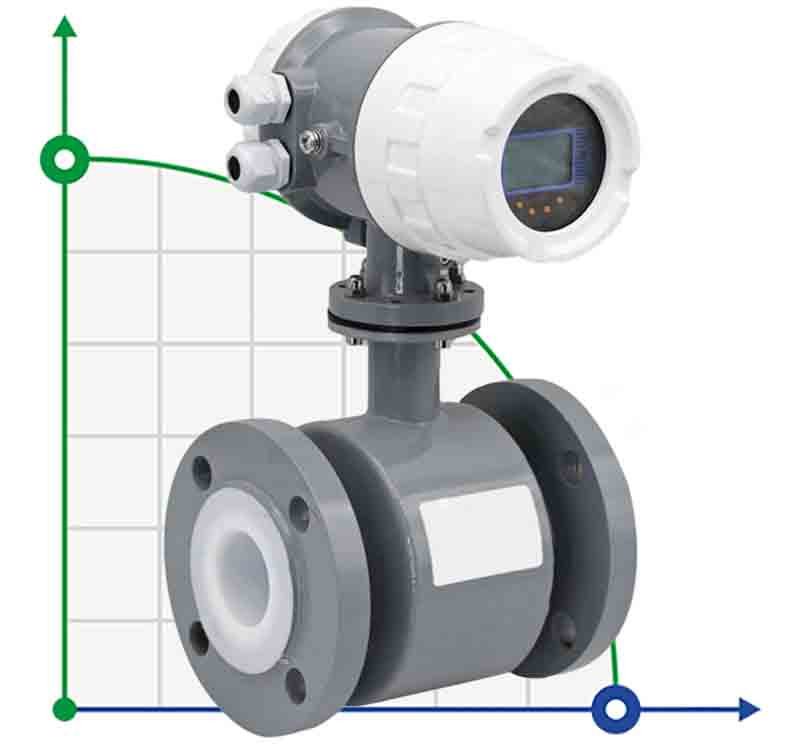

DN120 Electromagnetic flow meter KLD PN16 (water), 4.41-441 m3/h, 4-20mA+RS485

Code: 1051613
(0 review)
Control signal, mA4-20mA+RS485
Flow range4,41...441 m3/h
Electrode materialAISI 316L
Voltage, V24
Material of liningPTFE
Type of flow meterelectromagnetic
ProducerBTS Engineering
Explosion protectionNo
Housing materialcarbon steel
Connection typeflanged
Connection diameter, DN120
Country of OriginChina
Show all features (12)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1 529,81 (netto)
Добавить в сравнение
We deliver anywhere in the world
The measuring principle of electromagnetic flow meter is based on Faraday's law of electromagnetic induction. The sensor is mainly composed of a measuring tube with an insulated lining, a pair of electrodes installed by penetrating the wall of the measuring tube, a pair of coils and an iron core to generate a working magnetic field. When a conductive fluid flows through the sensor's measuring tube, a voltage signal directly proportional to the average fluid flow rate will be induced at the electrodes. The signal is amplified and processed by the transmitter to realise various display functions.
Control signal, mA4-20mA+RS485
Flow range4,41...441 m3/h
Electrode materialAISI 316L
Voltage, V24
Material of liningPTFE
Type of flow meterelectromagnetic
ProducerBTS Engineering
Explosion protectionNo
Housing materialcarbon steel
Connection typeflanged
Connection diameter, DN120
Country of OriginChina
