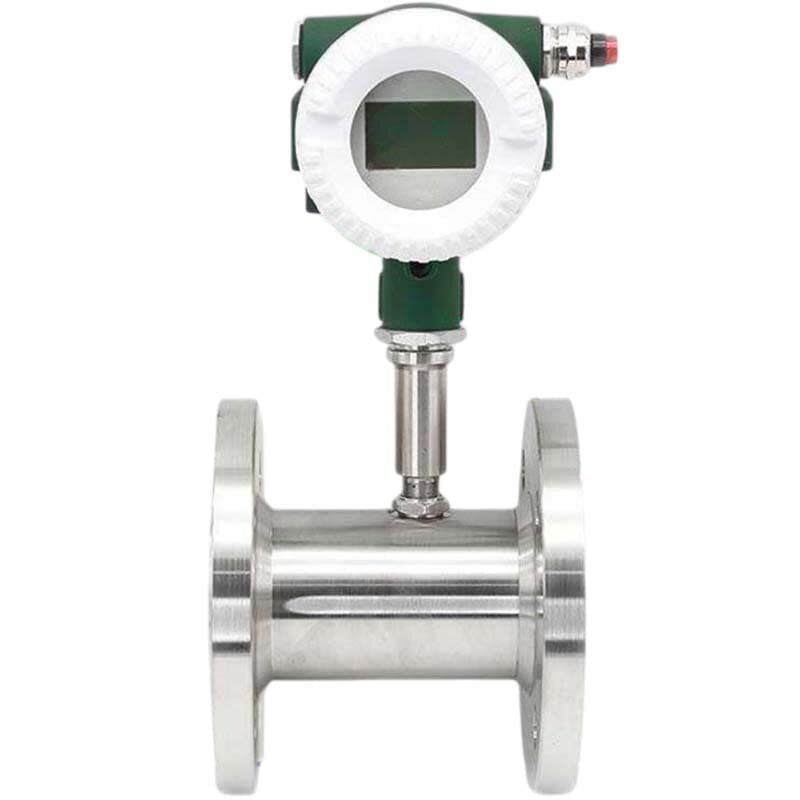

DN80 Liquid turbine flow meter for beer concentrate (BEER MIXING system) KLWGY PN16, 10-100 m3/h, 4-20mA stainless steel

Code: 1050536
(0 review)
Control signal, mA4-20
Flow range10...100 m3/h
Accuracy class (measurement error), %0,5
Voltage, V24
DisplayLCD
Type of flow meterturbine
ProducerBTS Engineering
ProtectionIP65
Explosion protectionNo
Housing materialAISI 304 stainless steel
Connection typeflanged
Conditional passage,DN80
Country of OriginChina
Show all features (13)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1 339,84 (netto)
Добавить в сравнение
We deliver anywhere in the world
Turbine type flow meter working principle, liquid turbine flow meter has small pressure loss, impeller with anti-corrosion function, strong anti-magnetic interference and vibration ability, reliable operation, long service life, solid whole machine function, low energy consumption. Liquid turbine flow meter is used to measure total volume flow and/or flow rate and has a relatively simple working principle. As the fluid flows through the turbine meter, it encounters the turbine blades, which rotate freely about an axis along the centreline of the turbine housing. The angular (rotational) velocity of the turbine rotor is directly proportional to the velocity of the fluid flowing through the turbine. The resulting output is sensed by the electrical sensor(s) mounted on the flowmeter body.
Control signal, mA4-20
Flow range10...100 m3/h
Accuracy class (measurement error), %0,5
Voltage, V24
DisplayLCD
Type of flow meterturbine
ProducerBTS Engineering
ProtectionIP65
Explosion protectionNo
Housing materialAISI 304 stainless steel
Connection typeflanged
Conditional passage,DN80
Country of OriginChina
