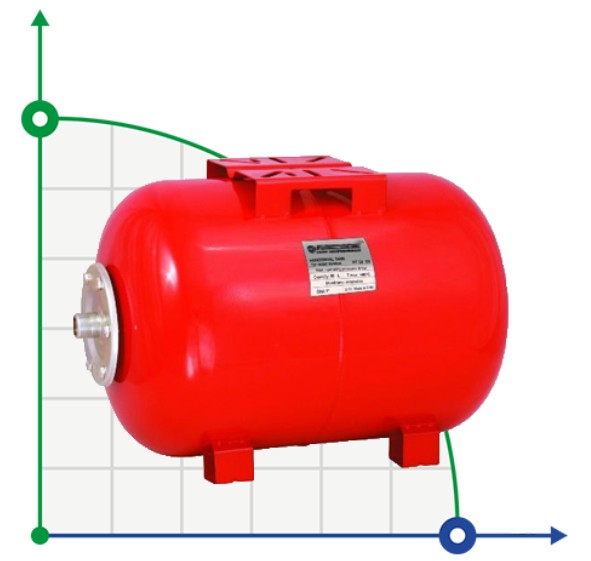

Horizontal hydraulic accumulator ROZ-NAVI 50 L. (16 bar)

Code: 17682
(0 review)
ProducerROZ-NAVI
Input pipe diameter1”
Max.medium temperature, Celsius degree100
Pressure, bar16
Height, mm620
Diaphragm material at water sideEPDM
Volume, l50
Diameter, mm380
Country of OriginTurkey
Weight, kg14
Show all features (10)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$100,73 (netto)
Добавить в сравнение
We deliver anywhere in the world
Expansion membrane tanks of the Turkish manufacturer ROZ-NAVI can be easily applied for such tasks as: - heating and hot water supply systems; - pressure increase in water supply systems; - cold supply and air conditioning; - fire extinguishing systems and various industrial tasks. Each tank from the model range of this manufacturer is equipped with a removable rubber membrane. The space between the membrane and the tank walls is filled with air. The main design feature of such tanks is the absence of liquid contact with the tank walls, which greatly contributes to the extension of the product's service life. ROZ-NAVI tanks are capable of handling liquids with temperatures ranging from -10 to + 100 ° C. All models with a capacity of 100 liters and above are equipped with a pressure gauge for measuring pressure. Tanks with a volume of up to 2000 l are supplied with membranes EPDM DIN 4807, and from 2000 l - with BUTYL membranes.
ProducerROZ-NAVI
Input pipe diameter1”
Max.medium temperature, Celsius degree100
Pressure, bar16
Height, mm620
Diaphragm material at water sideEPDM
Volume, l50
Diameter, mm380
Country of OriginTurkey
Weight, kg14
