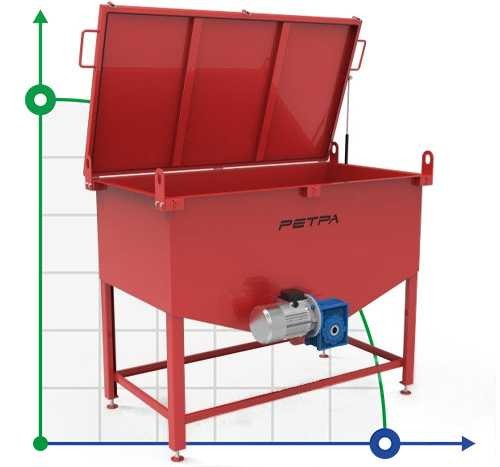

Feeding hopper for chips with a volume of 2.0 cubic meters

* Hopper type Closed * The volume of the hopper, m3 • Main; 2 м3 • With extension (H-0.5 / H-1.0). 2.5-3 m3 * Feeding method: two mixing plates * Transported material Pallets, wood chips (fraction up to 30 mm, sawdust, husks) * Humidity of the transported material, not more than 20 % * Screw diameter, 120 mm * The length of screw, 1550-2370 mm * The rotation speed of screw -1 9 min *The thickness of screw blade, 6 mm • Overall dimensions of the base of the container, - length 2395 (depth) mm; width 1005 mm; - height 1200 mm • Power consumption, 1.1 kW * Supply voltage - 380/50 Hz. • Mass of the main bunker, no more than 450 kg • Boiler power, 200-700 kW
