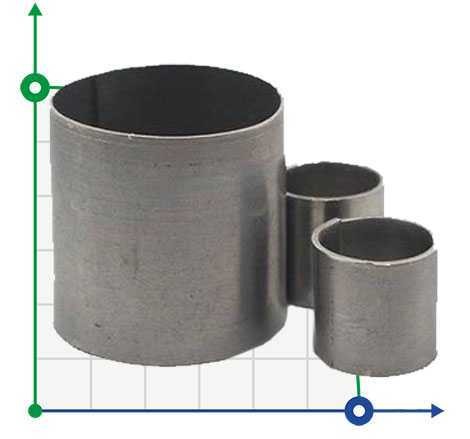

Name: Raschig Ring, AISI 304, 80 mm
Brand: BTS Engineering
SKU: 1019573

Click image for a larger view

Code: 1019573

Producer	BTS Engineering
Material	AISI 304 stainless steel
Diameter, mm	80
Nozzle type	Raschig Ring
Pour density, kg/m3	300
Specific surface area, m2/m3	65
Void factor, %	96
Quantity m.cubic	1 600
Application	distillations, desorber, absorber, rectifications, water saturation, packed columns, decarbonizer, gas purification, dehydration
Analogue for	MTE, Pall Ring Company, MACH Engineering LLC, Munters, НКС DOLSIN, Christy Catalytics, Koch-Glitsch, AMACS, Ultimo Engineers

Show all features (10)

Documentation

Description Raschig Ring, AISI 304, 80 mm

Friedrich Raschig invented the rings on the 1880s, but did not patent them until the 1910s. Due to simple cylindrical shaped tube with an aspect ratio 1:1, the liquid will move in the thousands of channels formed by the rings, coating the inside and outside surfaces, and eventually flowing to the bottom. Gas entering at the bottom will flow through the same paths formed by the rings, and will have time to contact and react with the liquid.

Category: Metal irregular nozzles

Features Raschig Ring, AISI 304, 80 mm

Producer	BTS Engineering
Material	AISI 304 stainless steel
Diameter, mm	80
Nozzle type	Raschig Ring
Pour density, kg/m3	300
Specific surface area, m2/m3	65
Void factor, %	96
Quantity m.cubic	1 600
Application	distillations, desorber, absorber, rectifications, water saturation, packed columns, decarbonizer, gas purification, dehydration
Analogue for	MTE, Pall Ring Company, MACH Engineering LLC, Munters, НКС DOLSIN, Christy Catalytics, Koch-Glitsch, AMACS, Ultimo Engineers
