Producer | BTS Engineering |
Pump capacity, cu.m/hour | 74 |
Feed height, m | 50 |
Material | cast iron |
Serial number of the pump | BST |
Country of Origin | China |
Input pipe diameter | 80 |
Output pipe diameter | 65 |
Power capacity, kW | 18,5 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Max.temperature, C | 120 |
Weight, kg | 158 |
Nom.flow rate, m3/h | 74 |
Nom.head, m | 50 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | cast iron |
Housing material | Сast iron |
Warranty, months | 12 |
Application | detergents, brake fluids, non-corrosive liquids, glycerol, antifreeze, antifreeze, coolant, heating systems, process fluids, increasing pressure, water |
Analogue for | Pedrollo HF, Ebara 3D, Speroni CFM, Speroni MEM, CALPEDA NM, Speroni CS |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 74 |
Feed height, m | 50 |
Material | cast iron |
Serial number of the pump | BST |
Country of Origin | China |
Input pipe diameter | 80 |
Output pipe diameter | 65 |
Power capacity, kW | 18,5 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Max.temperature, C | 120 |
Weight, kg | 158 |
Nom.flow rate, m3/h | 74 |
Nom.head, m | 50 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | cast iron |
Housing material | Сast iron |
Warranty, months | 12 |
Application | detergents, brake fluids, non-corrosive liquids, glycerol, antifreeze, antifreeze, coolant, heating systems, process fluids, increasing pressure, water |
Analogue for | Pedrollo HF, Ebara 3D, Speroni CFM, Speroni MEM, CALPEDA NM, Speroni CS |

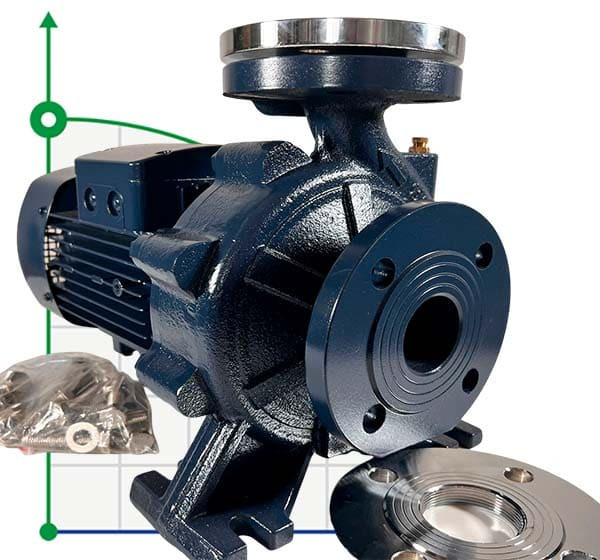

Download instructions, catalog for Monoblock centrifugal pump BST 65-200/18.5, 3000
