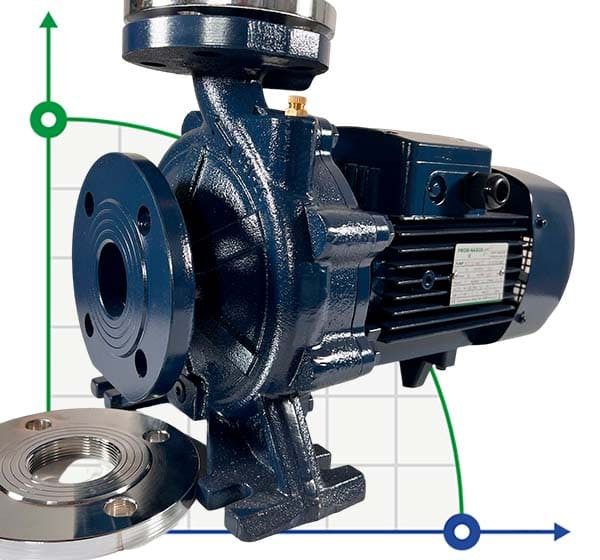

Monoblock centrifugal pump BST 80-160/18.5, 3000
Click image for a larger view
Monoblock centrifugal pump BST 80-160/18.5, 3000
Monoblock centrifugal pump BST 80-160/18.5, 3000
Monoblock centrifugal pump BST 80-160/18.5, 3000
Monoblock centrifugal pump BST 80-160/18.5, 3000
Monoblock centrifugal pump BST 80-160/18.5, 3000
More +5

Monoblock centrifugal pump BST 80-160/18.5, 3000

Code: 1019086
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m31
Power capacity, kW18,5
Materialcast iron
Input pipe diameter100
Output pipe diameter80
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Nom.flow rate, m3/h160
Nom.head, m31
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Housing materialСast iron
Serial number of the pumpBST
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationnon-corrosive liquids, glycerol, antifreeze, antifreeze, coolant, detergents, heating systems, process fluids, brake fluids, water, increasing pressure
Analogue forPedrollo HF, Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM
Weight, kg156
Length of transport packing, cm82
Width of transport packing, cm35
Height of transport packing, cm57
Height of transport volume, cbm0,164
Show all features (31)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1 537,56 (netto)
Добавить в сравнение
We deliver anywhere in the world
BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents. Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS. The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.
Categories: Cantilever centrifugal pumpMonoblock pump from cast ironPump for water supplyCantilever pump for water supplyWater pumpPump for heating systemsCantilever pumpsMonoblock pump for heating, water supply
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m31
Power capacity, kW18,5
Materialcast iron
Input pipe diameter100
Output pipe diameter80
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Nom.flow rate, m3/h160
Nom.head, m31
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Housing materialСast iron
Serial number of the pumpBST
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationnon-corrosive liquids, glycerol, antifreeze, antifreeze, coolant, detergents, heating systems, process fluids, brake fluids, water, increasing pressure
Analogue forPedrollo HF, Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM
Weight, kg156
Length of transport packing, cm82
Width of transport packing, cm35
Height of transport packing, cm57
Height of transport volume, cbm0,164
