Producer | BTS Engineering |
Pump capacity, cu.m/hour | 22 |
Feed height, m | 35 |
Material | AISI 304 |
Serial number of the pump | BZ |
Country of Origin | China |
Input pipe diameter | 65 |
Output pipe diameter | 40 |
Power capacity, kW | 4 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Weight, kg | 35,1 |
Nom.flow rate, m3/h | 22 |
Nom.head, m | 35 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | AISI 304 |
Housing material | AISI 304 |
Warranty, months | 12 |
Application | ammonia mixture, wine, urea, Braga, mudflow solution, brew, milk, Syrovatko, liquid fertilizer, CAS, juices, salt, CIP-washing, wort, food, caustic, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling |
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 22 |
Feed height, m | 35 |
Material | AISI 304 |
Serial number of the pump | BZ |
Country of Origin | China |
Input pipe diameter | 65 |
Output pipe diameter | 40 |
Power capacity, kW | 4 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | console |
Drive Type | electric |
Installation Type | horizontal |
Weight, kg | 35,1 |
Nom.flow rate, m3/h | 22 |
Nom.head, m | 35 |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Impeller material | AISI 304 |
Housing material | AISI 304 |
Warranty, months | 12 |
Application | ammonia mixture, wine, urea, Braga, mudflow solution, brew, milk, Syrovatko, liquid fertilizer, CAS, juices, salt, CIP-washing, wort, food, caustic, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure, water recycling |

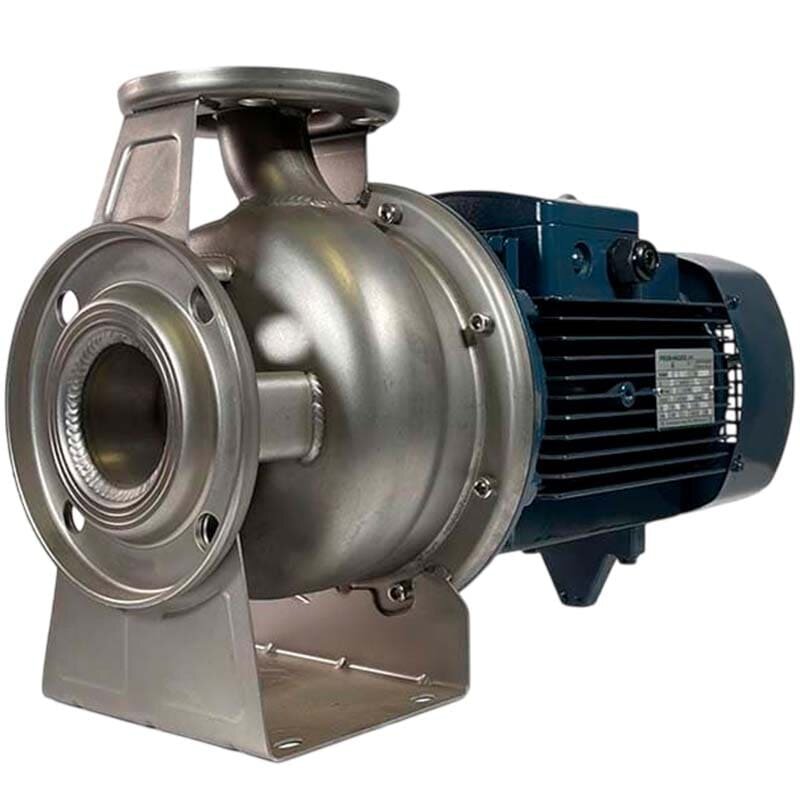

Download instructions, catalog for BZ 40-160/4 centrifugal monoblock pump (AISI)
