Name: BZ 40-200/11 stainless steel centrifugal monoblock pump for KAS
Brand: BTS Engineering
SKU: 1019128

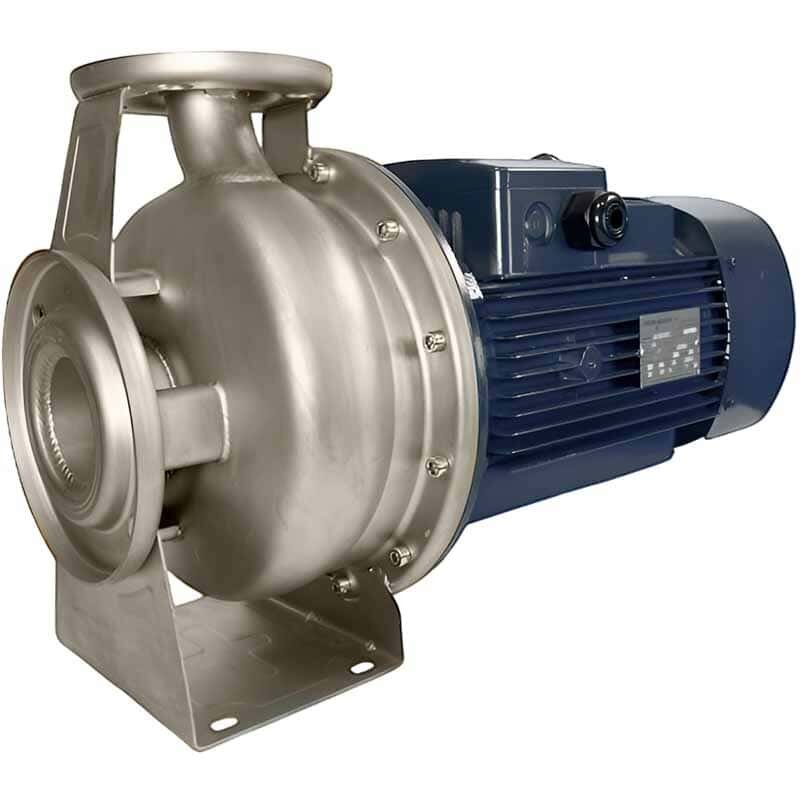

BZ 40-200/11 stainless steel centrifugal monoblock pump for KAS

Click image for a larger view

Code: 1019128

(0 review)

Producer	BTS Engineering
Pump capacity, m3/h	24
Feed height, m	68.5
Power capacity, kW	11
Material	AISI 304 stainless steel
Input pipe diameter	65
Output pipe diameter	40
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.temperature, C	120
Nom.flow rate, m3/h	24
Nom.head, m	68.5
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Housing material	AISI 304 stainless steel
Serial number of the pump	BZ
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Warranty, months	12
Application	mudflow solution, wine, urea, ammonia mixture, Braga, brew, milk, Syrovatko, liquid fertilizer, CAS, juices, ice water, wort, food, caustic, heating, drying, CIP-washing, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, salt
Weight, kg	67,5
Length of transport packing, cm	61
Width of transport packing, cm	45
Height of transport packing, cm	32
Transport packing volume, cbm	0,088

Show all features (29)

Documentation

Description BZ 40-200/11 stainless steel centrifugal monoblock pump for KAS

Monoblock pump BZ made of stainless steel. Purpose: water supply, pressure boosting, pumping of liquid mineral fertilizers, KAS, in agriculture, food industry, pumping of wort, yeast, mash, milk, beer, kvass, enzymes, juices, wine, fermented milk products, salt solutions, oil, vegetable oil with a temperature of up to 120C. Analog pump Ebara 3M, Pedrollo F-INOX, Speroni CNX, Calpeda MXH, Lowara CA. The pump is used to work with both non-aggressive and aggressive liquids that are chemically compatible with the materials of the pump part.

Categories: Cantilever centrifugal pump Pump for stillage, mash Water pump Pump for distillates Liquid Fertilizer Pump Pump for UAN Pump for milk, sour cream Urea pump Pump for beer and beer wort Brewery Pump Brine Pump Pump alcohol factory The pump for the separation of the part-time Pumps for aggressive liquids Milk pumps

Features BZ 40-200/11 stainless steel centrifugal monoblock pump for KAS

Producer	BTS Engineering
Pump capacity, m3/h	24
Feed height, m	68.5
Power capacity, kW	11
Material	AISI 304 stainless steel
Input pipe diameter	65
Output pipe diameter	40
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.temperature, C	120
Nom.flow rate, m3/h	24
Nom.head, m	68.5
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Housing material	AISI 304 stainless steel
Serial number of the pump	BZ
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Warranty, months	12
Application	mudflow solution, wine, urea, ammonia mixture, Braga, brew, milk, Syrovatko, liquid fertilizer, CAS, juices, ice water, wort, food, caustic, heating, drying, CIP-washing, cooling tower, the drying chamber, glaze, water, increasing pressure, water recycling, salt
Weight, kg	67,5
Length of transport packing, cm	61
Width of transport packing, cm	45
Height of transport packing, cm	32
Transport packing volume, cbm	0,088
