Name: Console pump for water supply BS 40-250/110 (27/63.5), 11kW, 2900 without motor
Brand: BTS Engineering
SKU: 1045002

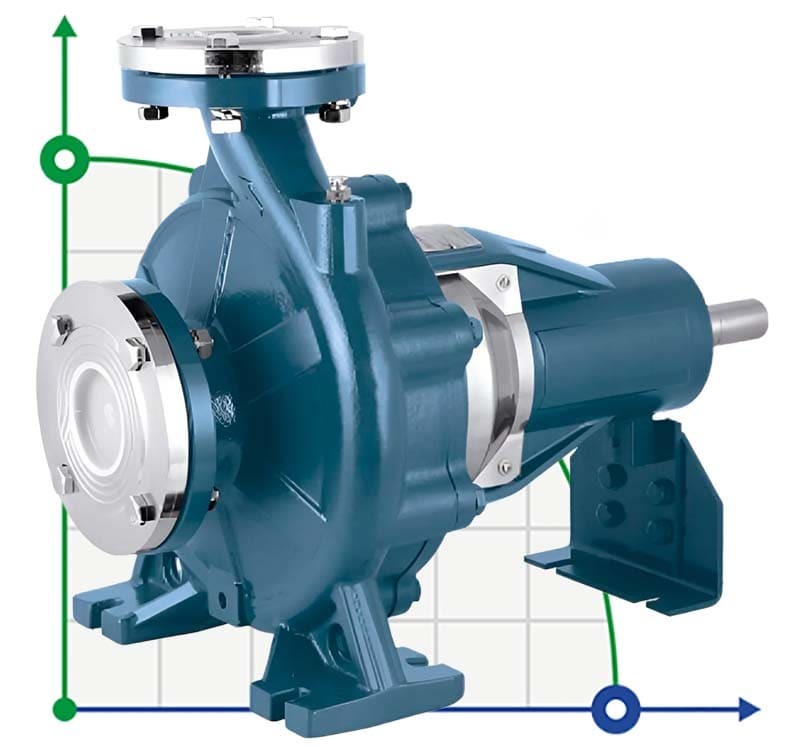

Console pump for water supply BS 40-250/110 (27/63.5), 11kW, 2900 without motor

Click image for a larger view

Code: 1045002

(0 review)

Producer	BTS Engineering
Pump capacity, m3/h	48
Feed height, m	72
Power capacity, kW	11
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN40
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	48
Max. head, m	72
Max.temperature, C	120
Nom.flow rate, m3/h	27
Nom.head, m	63.5
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Impeller diameter, mm	230
Serial number of the pump	BS
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	without engine
Warranty, months	12
Application	circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, water recycling, drying, heating
Weight, kg	58
Length of transport packing, cm	48
Width of transport packing, cm	32
Height of transport packing, cm	46
Transport packing volume, cbm	0,071

Show all features (33)

Documentation

Description Console pump for water supply BS 40-250/110 (27/63.5), 11kW, 2900 without motor

The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.

Category: Cantilever centrifugal pump

Features Console pump for water supply BS 40-250/110 (27/63.5), 11kW, 2900 without motor

Producer	BTS Engineering
Pump capacity, m3/h	48
Feed height, m	72
Power capacity, kW	11
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN40
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	48
Max. head, m	72
Max.temperature, C	120
Nom.flow rate, m3/h	27
Nom.head, m	63.5
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Impeller diameter, mm	230
Serial number of the pump	BS
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	without engine
Warranty, months	12
Application	circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, water recycling, drying, heating
Weight, kg	58
Length of transport packing, cm	48
Width of transport packing, cm	32
Height of transport packing, cm	46
Transport packing volume, cbm	0,071
