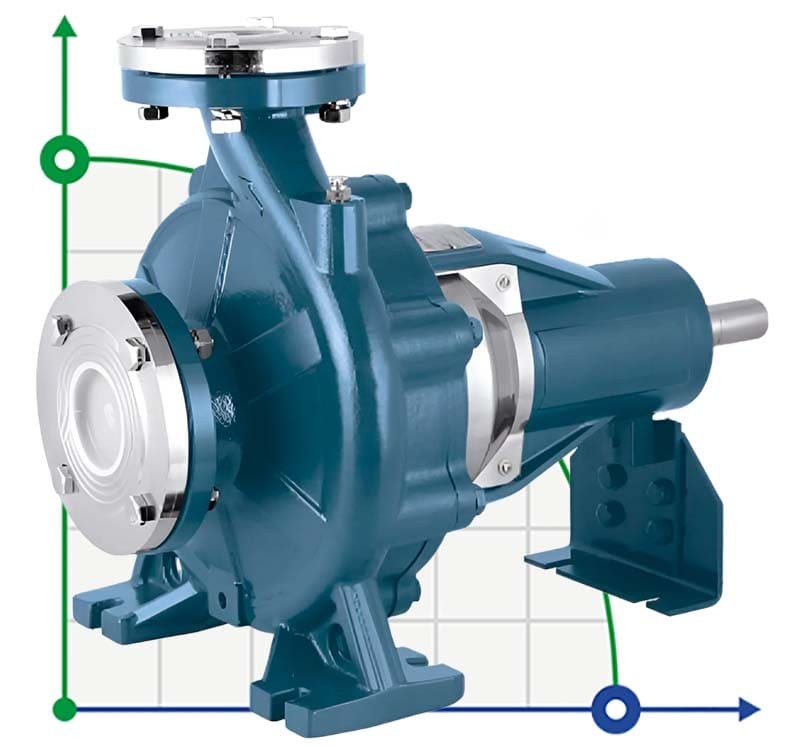

Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
Click image for a larger view
Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine

Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine

Code: 1045017
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h90
Feed height, m62
Power capacity, kW15
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN50
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h90
Max. head, m62
Max.temperature, C120
Nom.flow rate, m3/h54
Nom.head, m52
Nom.pressure, Mpa2
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Impeller diameter, mm209
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationcirculation, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure
Weight, kg46
Length of transport packing, cm48
Width of transport packing, cm28
Height of transport packing, cm38
Transport packing volume, cbm0,051
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$494 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Cantilever centrifugal pump
ProducerBTS Engineering
Pump capacity, m3/h90
Feed height, m62
Power capacity, kW15
Materialcast iron
Input pipe diameterDN65
Output pipe diameterDN50
Rate of turn, rpm2 900
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h90
Max. head, m62
Max.temperature, C120
Nom.flow rate, m3/h54
Nom.head, m52
Nom.pressure, Mpa2
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Impeller diameter, mm209
Serial number of the pumpBS
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwithout engine
Warranty, months12
Applicationcirculation, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure
Weight, kg46
Length of transport packing, cm48
Width of transport packing, cm28
Height of transport packing, cm38
Transport packing volume, cbm0,051

Download instructions, catalog for Cantilever pump for cooling tower BS 50-200/150 (54/52), 15kW, 2900 without engine
