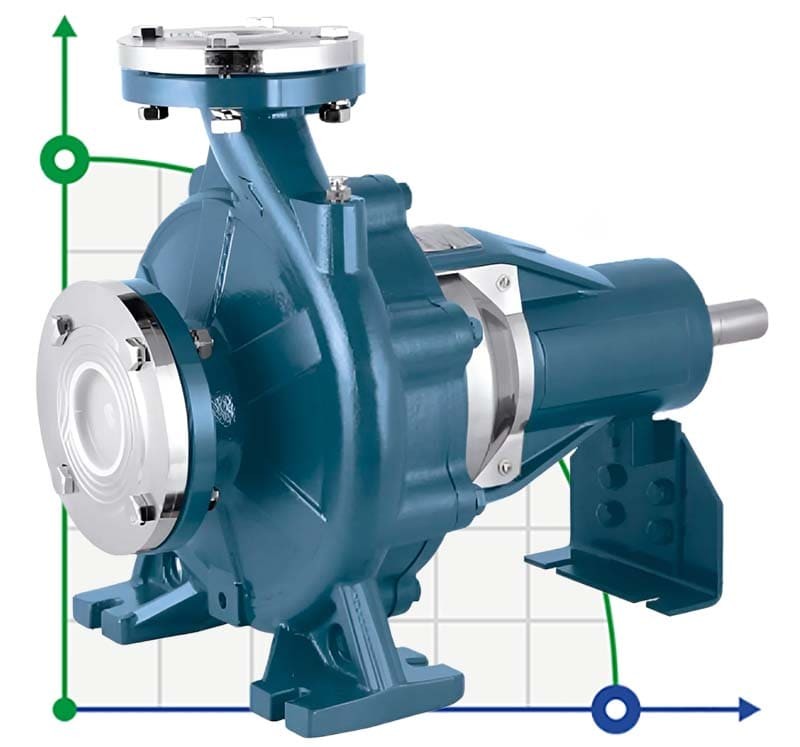

Name: Cantilever pump for water supply BS 65-315/750 (144/120), 75kW, 2900 without motor
Brand: BTS Engineering
SKU: 1045041

Cantilever pump for water supply BS 65-315/750 (144/120), 75kW, 2900 without motor

Click image for a larger view

Code: 1045041

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	210
Feed height, m	141
Power capacity, kW	75
Material	cast iron
Input pipe diameter	DN80
Output pipe diameter	DN65
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	210
Max. head, m	141
Max.temperature, C	120
Nom.flow rate, m3/h	144
Nom.head, m	120
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Impeller diameter, mm	317
Serial number of the pump	BS
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	without engine
Warranty, months	12
Application	circulation, water recycling, drying, increasing pressure, heating, cooling tower, ice water, the drying chamber, glaze, water
Weight, kg	120
Height of transport volume, cbm	0,202

Show all features (30)

Documentation

Description Cantilever pump for water supply BS 65-315/750 (144/120), 75kW, 2900 without motor

The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.

Category: Cantilever centrifugal pump

Features Cantilever pump for water supply BS 65-315/750 (144/120), 75kW, 2900 without motor

Producer	BTS Engineering
Pump capacity, cu.m/hour	210
Feed height, m	141
Power capacity, kW	75
Material	cast iron
Input pipe diameter	DN80
Output pipe diameter	DN65
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	210
Max. head, m	141
Max.temperature, C	120
Nom.flow rate, m3/h	144
Nom.head, m	120
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Impeller diameter, mm	317
Serial number of the pump	BS
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	without engine
Warranty, months	12
Application	circulation, water recycling, drying, increasing pressure, heating, cooling tower, ice water, the drying chamber, glaze, water
Weight, kg	120
Height of transport volume, cbm	0,202
