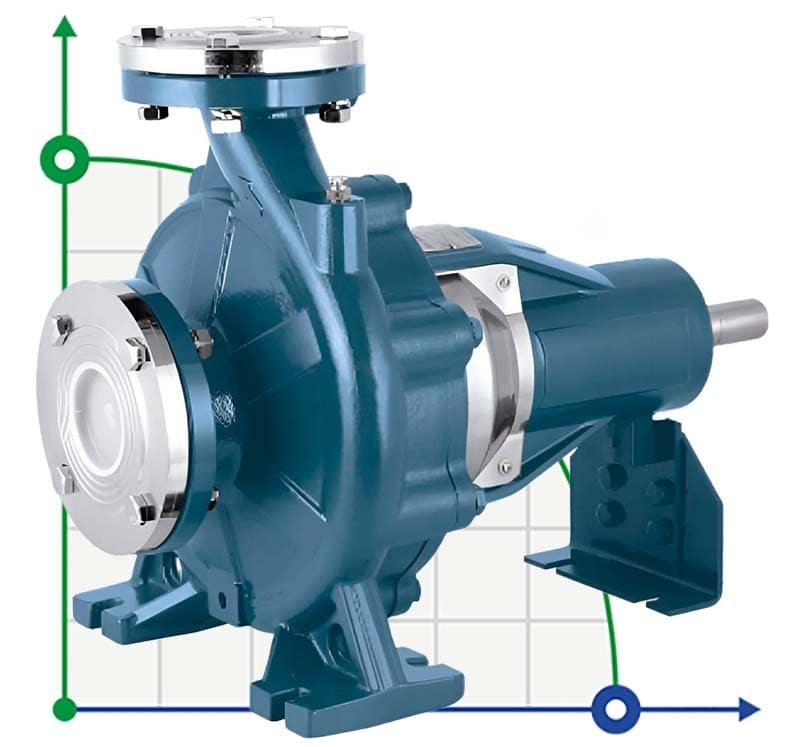

Name: Console pump for irrigation BS4 100-200/40 (96/9.7), 4kW, 1450 without motor
Brand: BTS Engineering
SKU: 1045138

Console pump for irrigation BS4 100-200/40 (96/9.7), 4kW, 1450 without motor

Click image for a larger view

Code: 1045138

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	150
Feed height, m	11.8
Power capacity, kW	4
Material	cast iron
Input pipe diameter	DN125
Output pipe diameter	DN100
Rate of turn, rpm	1 450
Protection	IP55
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	150
Max. head, m	11.8
Max.temperature, C	120
Nom.flow rate, m3/h	96
Nom.head, m	9.7
Nom.pressure, Mpa	1,6
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	cast iron
Impeller diameter, mm	185
Serial number of the pump	BS4
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	without engine
Warranty, months	12
Application	circulation, water recycling, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating
Weight, kg	75
Length of transport packing, cm	66
Width of transport packing, cm	38
Height of transport packing, cm	54
Height of transport volume, cbm	0,135

Show all features (33)

Documentation

Description Console pump for irrigation BS4 100-200/40 (96/9.7), 4kW, 1450 without motor

The pumping part of the BS4 series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, watering, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.

Category: Cantilever centrifugal pump
