| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 150 |
| Feed height, m | 11.5 |
| Power capacity, kW | 4 |
| Material | cast iron |
| Input pipe diameter | DN125 |
| Output pipe diameter | DN100 |
| Rate of turn, rpm | 1 450 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 150 |
| Max. head, m | 11.5 |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 96 |
| Nom.head, m | 10.2 |
| Nom.pressure, Mpa | 1,6 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Impeller material | cast iron |
| Impeller diameter, mm | 190 |
| Serial number of the pump | BSM4 |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water recycling, circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating |
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 150 |
| Feed height, m | 11.5 |
| Power capacity, kW | 4 |
| Material | cast iron |
| Input pipe diameter | DN125 |
| Output pipe diameter | DN100 |
| Rate of turn, rpm | 1 450 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 150 |
| Max. head, m | 11.5 |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 96 |
| Nom.head, m | 10.2 |
| Nom.pressure, Mpa | 1,6 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Impeller material | cast iron |
| Impeller diameter, mm | 190 |
| Serial number of the pump | BSM4 |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water recycling, circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating |

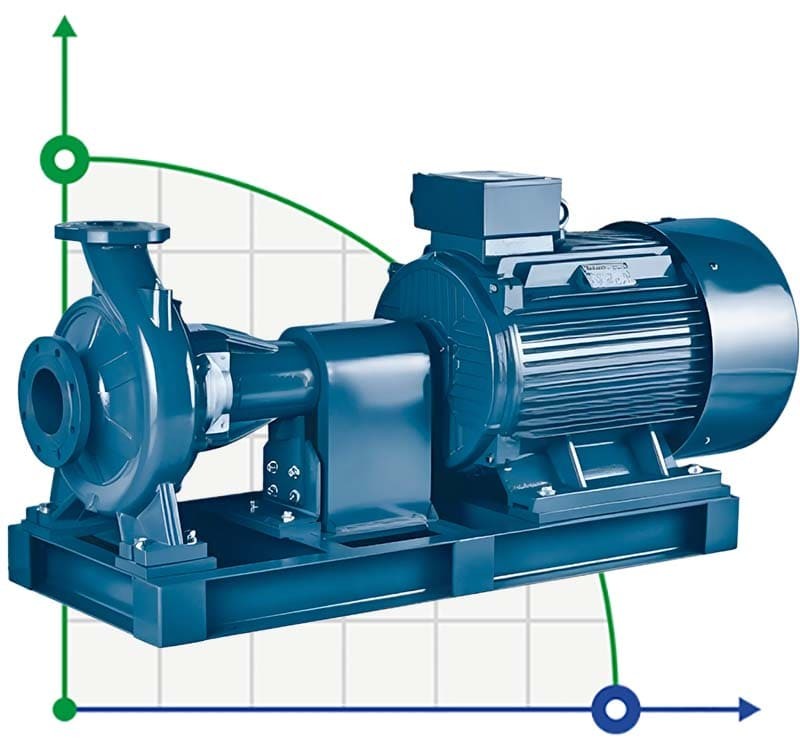

Download instructions, catalog for Console pump for cooling tower BSM4 100-160/40 (96/10.2), 4kW, 1450
