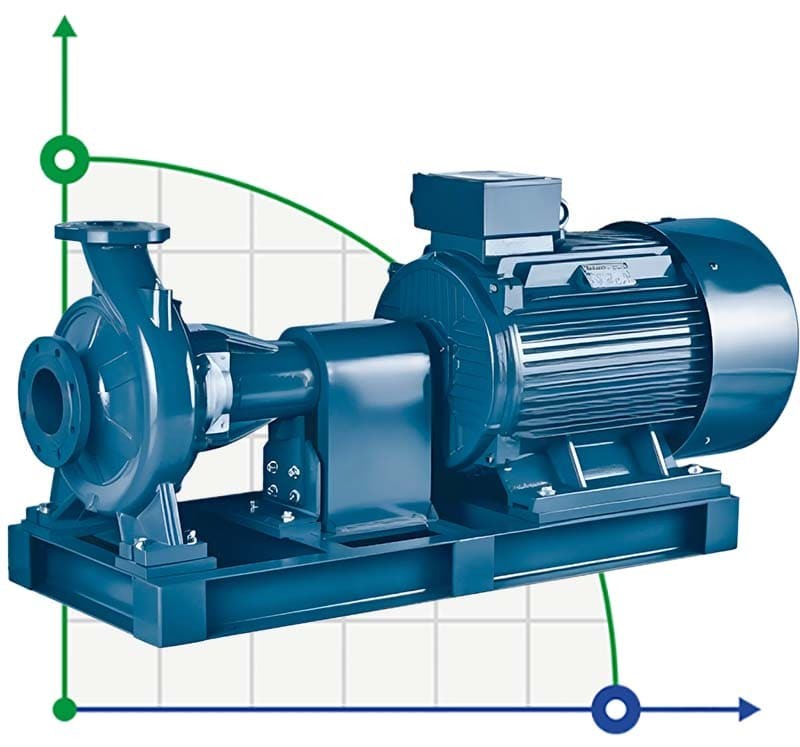

Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
Click image for a larger view
Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450

Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450

Code: 1045330
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour72
Feed height, m15.4
Power capacity, kW3
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN65
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h72
Max. head, m15.4
Max.temperature, C120
Nom.flow rate, m3/h45
Nom.head, m12.6
Nom.pressure, Mpa1,6
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Impeller diameter, mm225
Serial number of the pumpBSM4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwater recycling, circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating
Show all features (28)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1 600,25 (netto)
Добавить в сравнение
We deliver anywhere in the world
The console pump of the BSM4 series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Cantilever centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour72
Feed height, m15.4
Power capacity, kW3
Materialcast iron
Input pipe diameterDN80
Output pipe diameterDN65
Rate of turn, rpm1 450
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h72
Max. head, m15.4
Max.temperature, C120
Nom.flow rate, m3/h45
Nom.head, m12.6
Nom.pressure, Mpa1,6
SealMechanical Seal, Carbon-SiC-NBR
Impeller materialcast iron
Impeller diameter, mm225
Serial number of the pumpBSM4
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationwater recycling, circulation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, heating

Download instructions, catalog for Circulation console pump BSM4 65-250/30 (45/12.6), 3kW, 1450
