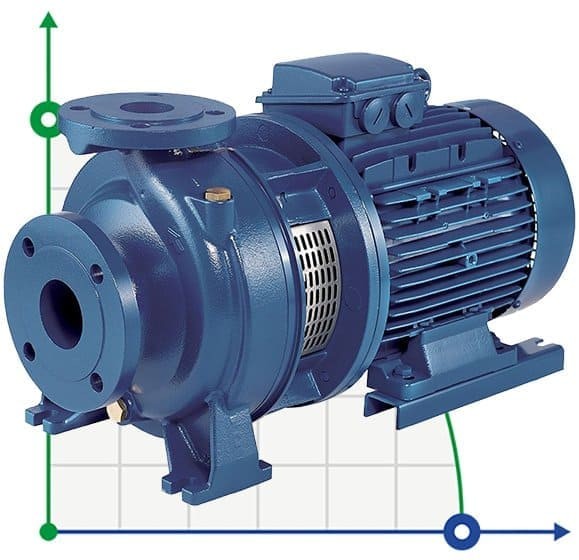

Monobloc centrifugal pump 3DS/M 65-200/15,0
Click image for a larger view
Monobloc centrifugal pump 3DS/M 65-200/15,0
Monobloc centrifugal pump 3DS/M 65-200/15,0
Monobloc centrifugal pump 3DS/M 65-200/15,0
Monobloc centrifugal pump 3DS/M 65-200/15,0

Monobloc centrifugal pump 3DS/M 65-200/15,0

Code: 2566170004M
(0 review)
ProducerEbara
Pump capacity, cu.m/hour132
Feed height, m54
Power capacity, kW15
Materialcast iron
Input pipe diameterDN 80
Output pipe diameterDN 65
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h132
Max. head, m54
Max.temperature, C110
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Housing materialСast iron
Serial number of the pump3DS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Weight, kg156,9
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$4 769,57 (netto)
Добавить в сравнение
We deliver anywhere in the world
The 3DS series are EBARA standardized pumps manufactured in accordance with EN733, with a cast iron casing and an AISI 304 stainless steel impeller. The 3DS series pumps are versatile devices that can be used and offer significant advantages in terms of reliability, efficiency and cost savings . Applications: intended for pumping running water, for residential, commercial, agricultural and industrial applications, for increasing pressure, for heating and air conditioning systems. It can also be used to irrigate fields, sports grounds and in washing plants.
Categories: Cantilever centrifugal pumpMonoblock pump from cast ironCantilever pump for water supplyWater pumpCantilever pumpsMonoblock pump for heating, water supply
ProducerEbara
Pump capacity, cu.m/hour132
Feed height, m54
Power capacity, kW15
Materialcast iron
Input pipe diameterDN 80
Output pipe diameterDN 65
Rate of turn, rpm3 000
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h132
Max. head, m54
Max.temperature, C110
SealMechanical Seal
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Housing materialСast iron
Serial number of the pump3DS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Weight, kg156,9
