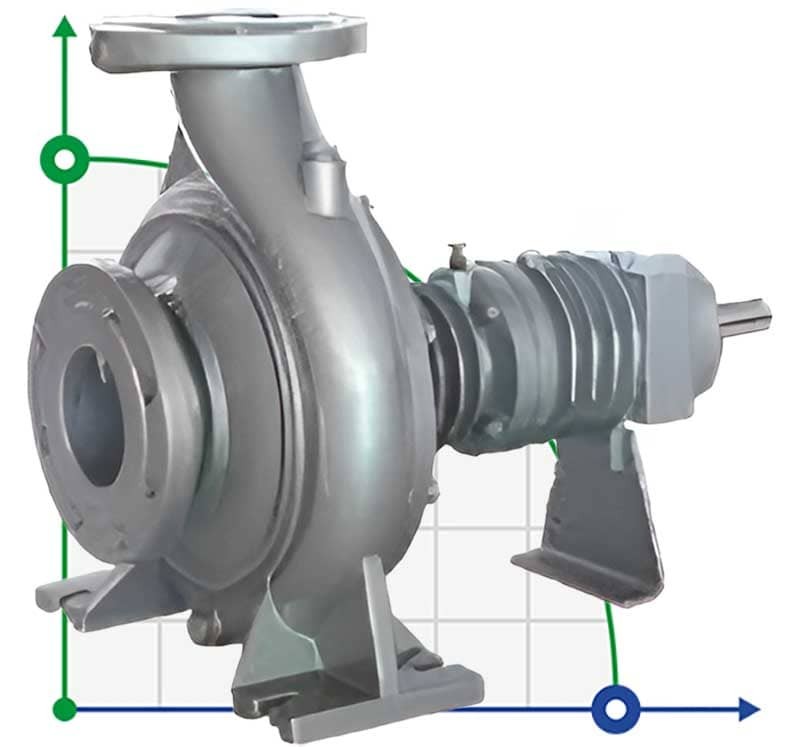

Thermal oil pump EMSE EKY 80-200, 22 kW, 2900, without engine

Code: 1044499
(0 review)
ProducerEMSE
Power capacity, kW22
Materialcast iron
Input pipe diameterDN100
Output pipe diameterDN80
Rate of turn, rpm2 900
Explosion protectionNo
Max.flow rate, m3/h150
Max. head, m42
Max.temperature, C320
Impeller diameter, mm175
Serial number of the pumpEKY
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Warranty, months12
Applicationthermal oil, superheated water
Analogue forAllweiler, ERDURO BTKF-K, SIHI, FLOWSERVE, Wilo, Pompetravaini TCD, KSB
Weight, kg73
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$3 275 (netto)
Добавить в сравнение
We deliver anywhere in the world
EMSE pumps of the EKY series are heat exchange pumps, which are often used in the processes of pumping high temperature liquids, hot oil 320°C, hot water, for heating bitumen, for woodworking plants. This is a centrifugal pump with one impeller, a casing with fins for cooling, and an electric motor connected to the casing by an elastic coupling. This offers advantages during dismantling. The pump is fitted with a mechanical seal made of materials resistant to high temperatures. The bearing system is designed to withstand the pumping of hot liquids. The parts are made of ductile iron and the bearings are made of steel as standard. The pump can be easily disassembled if the impeller, bearings or seals need to be replaced.
ProducerEMSE
Power capacity, kW22
Materialcast iron
Input pipe diameterDN100
Output pipe diameterDN80
Rate of turn, rpm2 900
Explosion protectionNo
Max.flow rate, m3/h150
Max. head, m42
Max.temperature, C320
Impeller diameter, mm175
Serial number of the pumpEKY
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Warranty, months12
Applicationthermal oil, superheated water
Analogue forAllweiler, ERDURO BTKF-K, SIHI, FLOWSERVE, Wilo, Pompetravaini TCD, KSB
Weight, kg73
