Name: SM 65-40-200/7,5 Pump
Brand: BTS Engineering
SKU: 1008143

Click image for a larger view

Code: 1008143

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	42
Feed height, m	44
Power capacity, kW	7,5
Material	AISI 304 stainless steel
Input pipe diameter	DN65
Output pipe diameter	DN40
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	42
Max. head, m	44
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Nom.pressure, Mpa	1
Volume, m3	0,54
Net weight,kg	68
Serial number of the pump	SM
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Availability of spare parts	yes
Warranty, months	12
Application	the drying chamber, CIP-washing, water recycling, increasing pressure, water, glaze, ice water, cooling tower, drying, heating, caustic, food, wort, salt, juices, CAS, liquid fertilizer, Syrovatko, milk, brew, mudflow solution, Braga, ammonia mixture, urea, wine
Analogue for	PERKINS, HYPRO, Hydro-Vacuum, Honda, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, KOLMEKS, Rovatti, Pentax, Johnson, PentairSwimmey, Packo, Onga, Svanehoj, Sprut, Speroni, SOMA, Simaco, SAER, Zenit, Inoxpa, Kenle, Unitech, ASTA, AlfaLaval, Aquatechnika, Aquario, APV, DAB, Cornell, Caprari, Calpeda, Bronzoni, Foras, FRISTAM, Flygt, Ebara, Alweller, DPPumps, Varna, Hobart, Hilge, Hidrostal, Grundfos, GEA, VARISCO, ThuneEureka, TEREX, TAJFUN, SIHI, Wilo, Greenpumps, OMAC, KSB, Allweiler, Sterling

Show all features (25)

Documentation

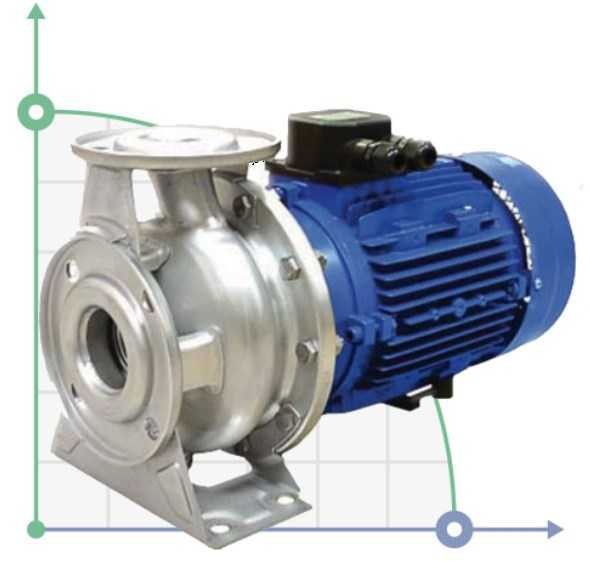

Description SM 65-40-200/7,5 Pump

SM stainless steel centrifugal pump is designed for pumping: food products, milk, sugar syrups, wort, Braga, wine, wine materials, whey, suspensions. It is used in water supply for water supply in pressure boosting stations, chemicals, chemically active products, caustic salt (salt solutions), butter, milk, pure water, urea-ammonia fertilizers, acids, CAS pumping, ammonia water, liquid fertilizers and water. The pump body, as well as all working elements in contact with the pumped medium, are made of high-quality stainless steel. The pump motor is asynchronous, placed horizontally. Warranty - 2 years. Warranty and post-warranty service. Official service center.

Features SM 65-40-200/7,5 Pump

Producer	BTS Engineering
Pump capacity, cu.m/hour	42
Feed height, m	44
Power capacity, kW	7,5
Material	AISI 304 stainless steel
Input pipe diameter	DN65
Output pipe diameter	DN40
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	42
Max. head, m	44
Max.temperature, C	120
Material of flow channel	AISI 304 stainless steel
Nom.pressure, Mpa	1
Volume, m3	0,54
Net weight,kg	68
Serial number of the pump	SM
Country of Origin	China
PumpType	console
Drive Type	electric
Installation Type	horizontal
Availability of spare parts	yes
Warranty, months	12
Application	the drying chamber, CIP-washing, water recycling, increasing pressure, water, glaze, ice water, cooling tower, drying, heating, caustic, food, wort, salt, juices, CAS, liquid fertilizer, Syrovatko, milk, brew, mudflow solution, Braga, ammonia mixture, urea, wine
Analogue for	PERKINS, HYPRO, Hydro-Vacuum, Honda, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, KOLMEKS, Rovatti, Pentax, Johnson, PentairSwimmey, Packo, Onga, Svanehoj, Sprut, Speroni, SOMA, Simaco, SAER, Zenit, Inoxpa, Kenle, Unitech, ASTA, AlfaLaval, Aquatechnika, Aquario, APV, DAB, Cornell, Caprari, Calpeda, Bronzoni, Foras, FRISTAM, Flygt, Ebara, Alweller, DPPumps, Varna, Hobart, Hilge, Hidrostal, Grundfos, GEA, VARISCO, ThuneEureka, TEREX, TAJFUN, SIHI, Wilo, Greenpumps, OMAC, KSB, Allweiler, Sterling
