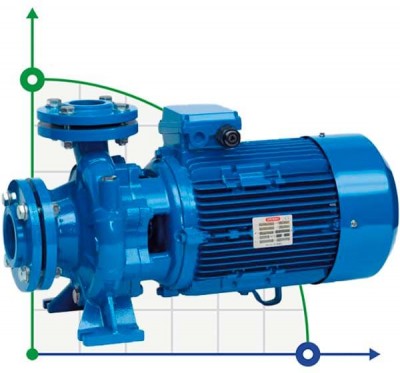

Speroni CS 65-250 A centrifugal monoblock pump

Code: 101803470
(0 review)
ProducerSperoni
Pump capacity, cu.m/hour156
Feed height, m89.5
Power capacity, kW37
Input pipe diameterDN80
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h156
Max. head, m89.5
Max.temperature, C100
Material of flow channelcast iron
Nom.pressure, Mpa1
Serial number of the pumpCS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationheating systems, detergents, coolant, antifreeze, antifreeze, glycerol, non-corrosive liquids, drilling mixtures, brake fluids, process fluids, solvents, increasing pressure, water
Show all features (20)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$6 587 (netto)
Добавить в сравнение
We deliver anywhere in the world
Centrifugal single-stage electric pump Speroni CS series manufactured according to DIN 24255 - NFE44-II - UNI 7467 standards. The pump and motor are connected via an intermediate flange. This pump is ideal for pumping clean water, water in heating systems and industrial and economic water, condensate and other liquid-flowing, mineral oil-free working media without abrasive or long-fiber inclusions and substances. If it is intended to pump a liquid whose density and/or viscosity differs from the same water parameters, then due to a change in hydraulic power, it is necessary to take into account the power required in this case by the electric motor. The pump with normal suction and spiral monoblock housing is used in industrial water cooling and circulation systems, heating and air conditioning systems, water supply and water treatment, technological processes.
ProducerSperoni
Pump capacity, cu.m/hour156
Feed height, m89.5
Power capacity, kW37
Input pipe diameterDN80
Output pipe diameterDN65
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h156
Max. head, m89.5
Max.temperature, C100
Material of flow channelcast iron
Nom.pressure, Mpa1
Serial number of the pumpCS
Country of OriginItaly
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationheating systems, detergents, coolant, antifreeze, antifreeze, glycerol, non-corrosive liquids, drilling mixtures, brake fluids, process fluids, solvents, increasing pressure, water
