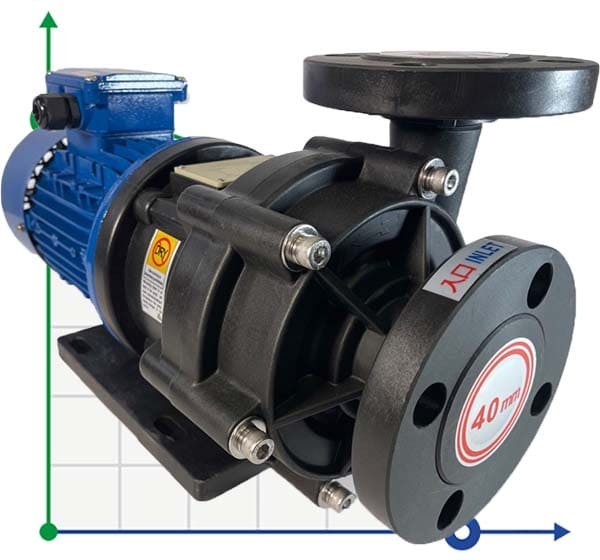

Chemical pump with magnetic coupling QHX-E-440-SSV5V38AFGABS, CFRETFE, 240L/min, 12.3m, 380V

Code: 1050855
(0 review)
ProducerQeehua
Pump capacity, cu.m/hour14.4
Feed height, m12.3
Power capacity, kW0,37
MaterialCFRETFE
Input pipe diameter40
Output pipe diameter40
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h14.4
Max. head, m12.3
Max.temperature, C150
Dimensions, mm453x229x157
Shaft materialSSIC
Material of O-ringVITON
Bearing MaterialSSIC
Serial number of the pumpQHX
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forAGRAL TMR, AGRAL TMP, AGRAL TMB, Crystal HCM, Gemme Cotti HTM, Kaix MDP, Finish Thompson Ins, IWAKI, FLUIMAC CM, Tapflo, STEINER, EVT, SP, DB, M Pumps CM MAG-P, FTI, ARBO, STN
Weight, kg13,3
Show all features (22)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Logistics center: In stock
* Delivery of goods to the warehouse
$1 581,51 (netto)
Добавить в сравнение
We deliver anywhere in the world
Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid. Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type. The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber. The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids. Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time). Pump analogues: - AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series
ProducerQeehua
Pump capacity, cu.m/hour14.4
Feed height, m12.3
Power capacity, kW0,37
MaterialCFRETFE
Input pipe diameter40
Output pipe diameter40
Power supply3х380 V, 50 Hz
Max.flow rate, m3/h14.4
Max. head, m12.3
Max.temperature, C150
Dimensions, mm453x229x157
Shaft materialSSIC
Material of O-ringVITON
Bearing MaterialSSIC
Serial number of the pumpQHX
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Analogue forAGRAL TMR, AGRAL TMP, AGRAL TMB, Crystal HCM, Gemme Cotti HTM, Kaix MDP, Finish Thompson Ins, IWAKI, FLUIMAC CM, Tapflo, STEINER, EVT, SP, DB, M Pumps CM MAG-P, FTI, ARBO, STN
Weight, kg13,3
