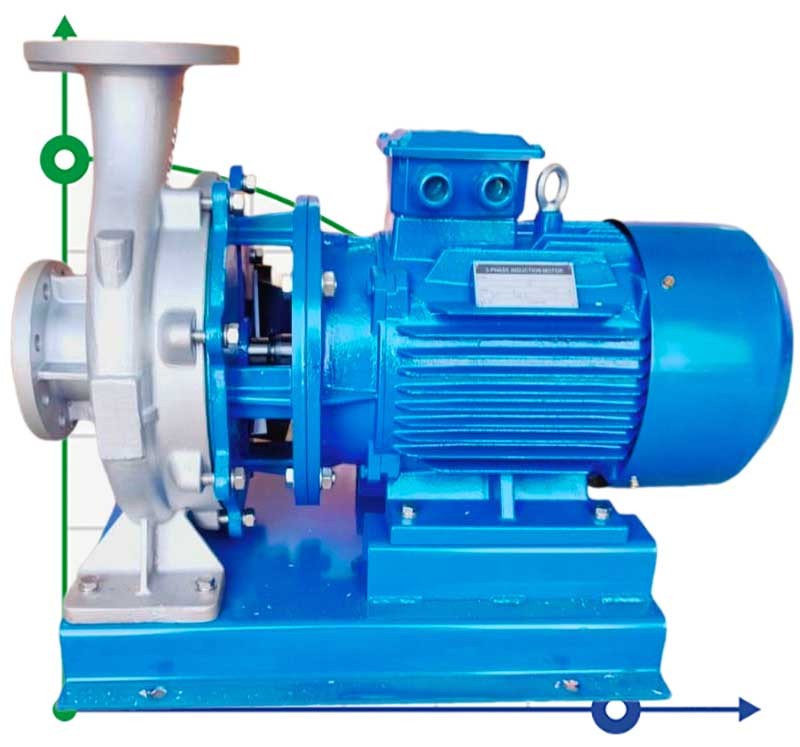

TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
Click image for a larger view
TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump

TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump

Code: 1048338
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour5.1
Feed height, m13
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameter50
Output pipe diameter50
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h5.1
Nom.head, m13
Impeller diameter, mm220
Suction capacity (NPSH), m2,5
Serial number of the pumpTKHW
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
Weight, kg50
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHW series made of stainless steel AISI 304 (casing, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, UAN fertilisers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.
Category: Cantilever centrifugal pump
ProducerBTS Engineering
Pump capacity, cu.m/hour5.1
Feed height, m13
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameter50
Output pipe diameter50
Rate of turn, rpm1 450
Power supply3х380 V, 50 Hz
Explosion protectionNo
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h5.1
Nom.head, m13
Impeller diameter, mm220
Suction capacity (NPSH), m2,5
Serial number of the pumpTKHW
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
Weight, kg50

Download instructions, catalog for TKHW 50/220-0.75/4 (5,1/13), 0,75 kW, AISI 304, 1450 horizontal stainless steel pump
