| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 200 |
| Feed height, m | 32 |
| Power capacity, kW | 30 |
| Material | cast iron |
| Input pipe diameter | 150 |
| Output pipe diameter | 150 |
| Rate of turn, rpm | 1 480 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Material of flow channel | cast iron |
| Nom.flow rate, m3/h | 200 |
| Nom.head, m | 32 |
| Impeller diameter, mm | 315 |
| Suction capacity (NPSH), m | 3,5 |
| Serial number of the pump | TKW |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | irrigation, irrigation systems, for systems of water supply, extinguishing, water, cooling tower |
| Weight, kg | 410 |
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 200 |
| Feed height, m | 32 |
| Power capacity, kW | 30 |
| Material | cast iron |
| Input pipe diameter | 150 |
| Output pipe diameter | 150 |
| Rate of turn, rpm | 1 480 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Material of flow channel | cast iron |
| Nom.flow rate, m3/h | 200 |
| Nom.head, m | 32 |
| Impeller diameter, mm | 315 |
| Suction capacity (NPSH), m | 3,5 |
| Serial number of the pump | TKW |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | irrigation, irrigation systems, for systems of water supply, extinguishing, water, cooling tower |
| Weight, kg | 410 |

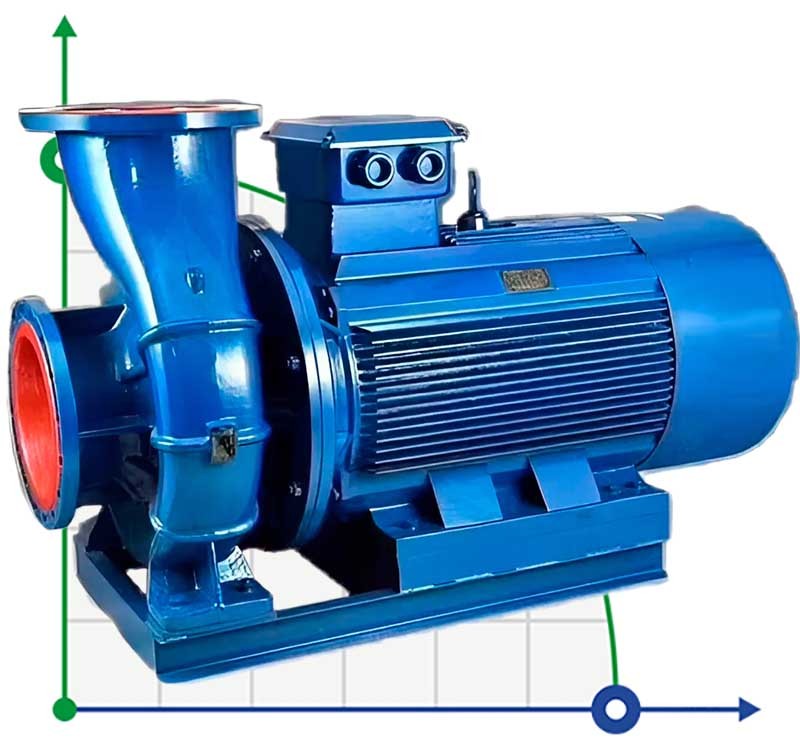

Download instructions, catalog for TKW 150/315-30/4 (200/32), 30 kW, 1480 нorizontal centrifugal pump
