Circulation pump ETKF-M 32-125, 0,37 kW, 1500
Click image for a larger view
Circulation pump ETKF-M 32-125, 0,37 kW, 1500
Circulation pump ETKF-M 32-125, 0,37 kW, 1500
Circulation pump ETKF-M 32-125, 0,37 kW, 1500
Circulation pump ETKF-M 32-125, 0,37 kW, 1500
Circulation pump ETKF-M 32-125, 0,37 kW, 1500

Circulation pump ETKF-M 32-125, 0,37 kW, 1500

Code: 1037020
(0 review)
ProducerERDURO
Pump capacity, m3/h10
Feed height, m7.5
Power capacity, kW0,37
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h10
Max. head, m7.5
Max.temperature, C100
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm154
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationcirculation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, water recycling, heating
Analogue forCALPEDA NM, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF
Weight, kg28
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$867 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).
Categories: Cantilever centrifugal pumpMonoblock pump from cast ironPump for water supplyCantilever pump for water supplyWater pumpPump for heating systemsCantilever pumpsMonoblock pump for heating, water supply
ProducerERDURO
Pump capacity, m3/h10
Feed height, m7.5
Power capacity, kW0,37
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h10
Max. head, m7.5
Max.temperature, C100
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm154
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationcirculation, increasing pressure, water, glaze, the drying chamber, ice water, cooling tower, drying, water recycling, heating
Analogue forCALPEDA NM, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF
Weight, kg28
Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$113
PN6 DN100 Wafer butterfly valve, body and disc AISI 304, PTFE, Single-acting (with spring) Pneumatic actuator Ex+positioner 4-20MA
PN6 DN100 Wafer butterfly valve, body and disc AISI 304, PTFE, Single-acting ...
1042673
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
Preorder
0
$1 420
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$75
DN40 Thermodynamic flanged condensate trap PN16/1.0619
DN40 Thermodynamic flanged condensate trap PN16/1.0619
1040126
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$385
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, ...
1040256
Control signal, mA
4-20
Mode of action
normally closed
Preorder
0
$1 959
PN6 DN150 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA
PN6 DN150 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting ...
1042674
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
In stock
0
$1 441
Control panel for pump, 4 kW
Control panel for pump, 4 kW
16607
Producer
BTS Engineering
Power capacity, kW
4
In stock
0
$389
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Se...
1042540
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$57
Control panel for pump, 1.5 kW
Control panel for pump, 1.5 kW
16606
Producer
BTS Engineering
Power capacity, kW
1,5
In stock
0
$206
PN16 DN80 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
PN16 DN80 Butterfly valve, body and disc made of stainless steel AISI 304, Se...
1042541
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$63
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
1042835
Producer
BTS Engineering
Power capacity, kW
1,1-7,5
In stock
0
$120
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
1042836
Producer
BTS Engineering
Power capacity, kW
1,1-11
In stock
0
$129
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042552
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$54
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
1042837
Producer
BTS Engineering
Power capacity, kW
2,2-15
In stock
0
$150
Control panel for pump, 3 kW
Control panel for pump, 3 kW
16604
Producer
BTS Engineering
Power capacity, kW
3
In stock
0
$378
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
1042838
Producer
BTS Engineering
Power capacity, kW
3-18,5
In stock
0
$183
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
1042839
Producer
BTS Engineering
Power capacity, kW
4-22
In stock
0
$216
Control panel for pump, 5.5 kW
Control panel for pump, 5.5 kW
16610
Producer
BTS Engineering
Power capacity, kW
5,5
In stock
0
$402
PN16 DN100 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
PN16 DN100 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042551
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$39
Control panel for pump, 2.2 kW
Control panel for pump, 2.2 kW
16605
Producer
BTS Engineering
Power capacity, kW
2,2
In stock
0
$275
Control panel for pump, 7.5 kW
Control panel for pump, 7.5 kW
16608
Producer
BTS Engineering
Power capacity, kW
7,5
In stock
0
$408
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
1040107
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$266
Control panel for pump, 22 kW
Control panel for pump, 22 kW
16613
Producer
BTS Engineering
Power capacity, kW
22
In stock
0
$1 567
Control panel for pump, 11 kW
Control panel for pump, 11 kW
16609
Producer
BTS Engineering
Power capacity, kW
11
In stock
0
$421
PN16 DN50 Stainless steel ball valve AISI 316, seat PTFE
PN16 DN50 Stainless steel ball valve AISI 316, seat PTFE
1040108
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$195
Control panel for pump, 18.5 kW
Control panel for pump, 18.5 kW
16612
Producer
BTS Engineering
Power capacity, kW
18,5
In stock
0
$681
Control panel for pump, 15 kW
Control panel for pump, 15 kW
16611
Producer
BTS Engineering
Power capacity, kW
15
Preorder
0
$564
Products from the same category
Monoblock ice water pump ETKF-M 32-160, 0,37 kW, 1500
Monoblock ice water pump ETKF-M 32-160, 0,37 kW, 1500
1037021
Producer
ERDURO
Pump capacity, m3/h
12
Pre-order only
0
$890
Centrifugal monoblock pump ETKF-M 32-160, 0,55 kW, 1500
Centrifugal monoblock pump ETKF-M 32-160, 0,55 kW, 1500
1037022
Producer
ERDURO
Pump capacity, m3/h
14
Pre-order only
0
$1 012
Monoblock pump for the cooling tower ETKF-M 32-160, 0,75 kW, 1500
Monoblock pump for the cooling tower ETKF-M 32-160, 0,75 kW, 1500
1037023
Producer
ERDURO
Pump capacity, m3/h
16
Pre-order only
0
$1 060
Monoblock pump for the cooling tower ETKF-M 32-200, 0,75 kW, 1500
Monoblock pump for the cooling tower ETKF-M 32-200, 0,75 kW, 1500
1037024
Producer
ERDURO
Pump capacity, m3/h
18
Pre-order only
0
$1 149

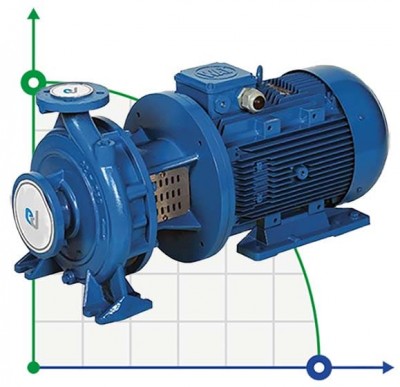

Centrifugal monoblock pump ETKF-M 32-200, 1,1 kW, 1500
