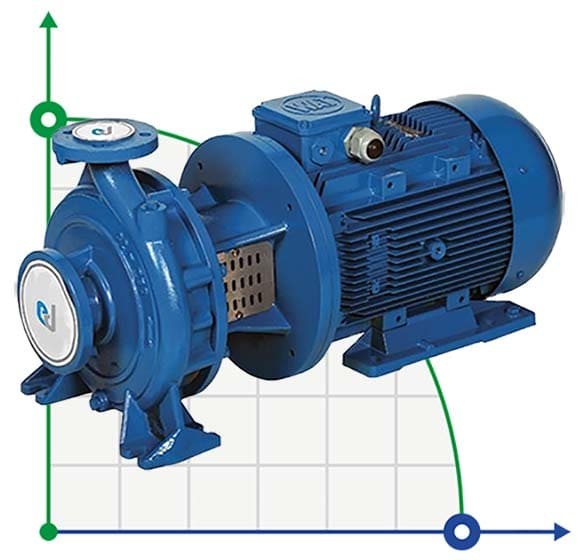

Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500
Click image for a larger view
Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500
Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500
Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500
Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500
Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500

Monoblock pump for heating ETKF-M 32-200, 1,5 kW, 1500

Code: 1037026
(0 review)
ProducerERDURO
Pump capacity, m3/h21
Feed height, m16.4
Power capacity, kW1,5
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h21
Max. head, m16.4
Max.temperature, C100
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm214
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationcirculation, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure
Analogue forCALPEDA NM, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF
Weight, kg44
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1 398 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).
Categories: Cantilever centrifugal pumpMonoblock pump from cast ironPump for water supplyCantilever pump for water supplyWater pumpPump for heating systemsCantilever pumpsMonoblock pump for heating, water supply
ProducerERDURO
Pump capacity, m3/h21
Feed height, m16.4
Power capacity, kW1,5
Materialcast iron
Input pipe diameterDN50
Output pipe diameterDN32
Rate of turn, rpm1 500
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h21
Max. head, m16.4
Max.temperature, C100
SealMechanical Seal
Impeller materialcast iron
Housing materialСast iron
Impeller diameter, mm214
Serial number of the pumpETKF-M
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Applicationcirculation, water recycling, heating, drying, cooling tower, ice water, the drying chamber, glaze, water, increasing pressure
Analogue forCALPEDA NM, Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF
Weight, kg44
