Name: Pressure boosting pump ETKF-M 50-200,15 kW, 3000
Brand: ERDURO
SKU: 1037194

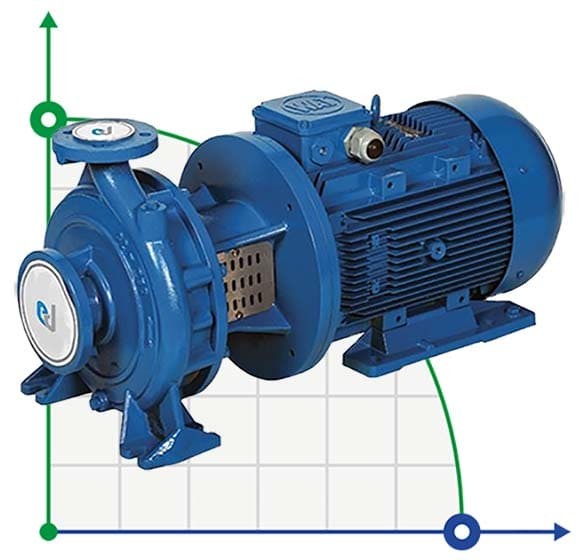

Pressure boosting pump ETKF-M 50-200,15 kW, 3000

Click image for a larger view

Code: 1037194

(0 review)

Producer	ERDURO
Pump capacity, m3/h	80
Feed height, m	55
Power capacity, kW	15
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN50
Rate of turn, rpm	3 000
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	80
Max. head, m	55
Max.temperature, C	100
Seal	Mechanical Seal
Impeller material	cast iron
Housing material	Сast iron
Impeller diameter, mm	197
Serial number of the pump	ETKF-M
Country of Origin	Turkey
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Application	cooling tower, heating, drying, ice water, circulation, the drying chamber, glaze, water, increasing pressure, water recycling
Analogue for	Speroni CFM, Pedrollo HF, Speroni MEM, Speroni CS, CALPEDA NM, Ebara 3D
Weight, kg	138

Show all features (26)

Documentation

Description Pressure boosting pump ETKF-M 50-200,15 kW, 3000

ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).

Categories: Cantilever centrifugal pump Monoblock pump from cast iron Pump for water supply Cantilever pump for water supply Water pump Pump for heating systems Cantilever pumps Monoblock pump for heating, water supply

Features Pressure boosting pump ETKF-M 50-200,15 kW, 3000

Producer	ERDURO
Pump capacity, m3/h	80
Feed height, m	55
Power capacity, kW	15
Material	cast iron
Input pipe diameter	DN65
Output pipe diameter	DN50
Rate of turn, rpm	3 000
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	80
Max. head, m	55
Max.temperature, C	100
Seal	Mechanical Seal
Impeller material	cast iron
Housing material	Сast iron
Impeller diameter, mm	197
Serial number of the pump	ETKF-M
Country of Origin	Turkey
PumpType	console
Drive Type	electric
Installation Type	horizontal
Type of configuration	with engine
Application	cooling tower, heating, drying, ice water, circulation, the drying chamber, glaze, water, increasing pressure, water recycling
Analogue for	Speroni CFM, Pedrollo HF, Speroni MEM, Speroni CS, CALPEDA NM, Ebara 3D
Weight, kg	138
