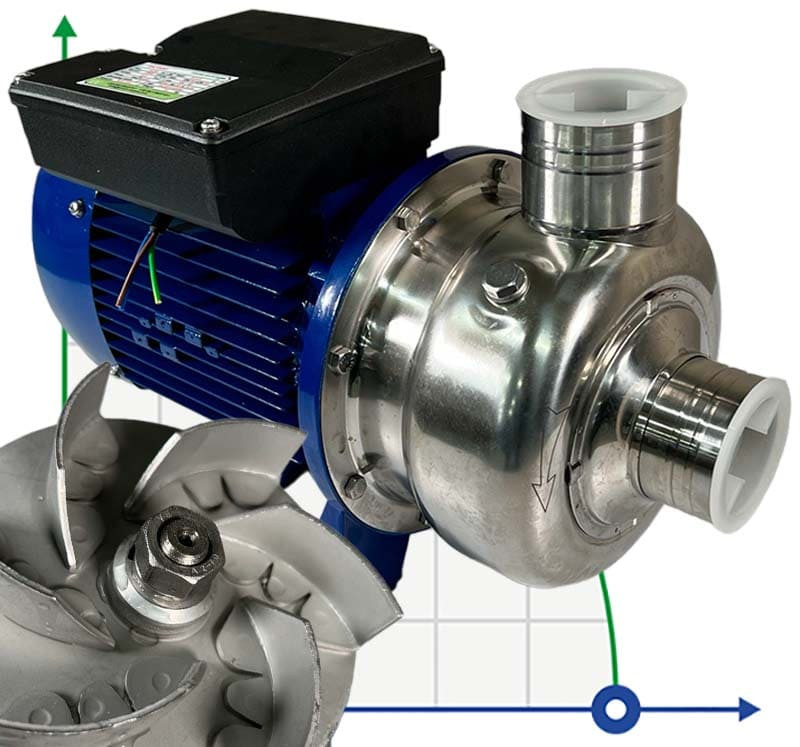

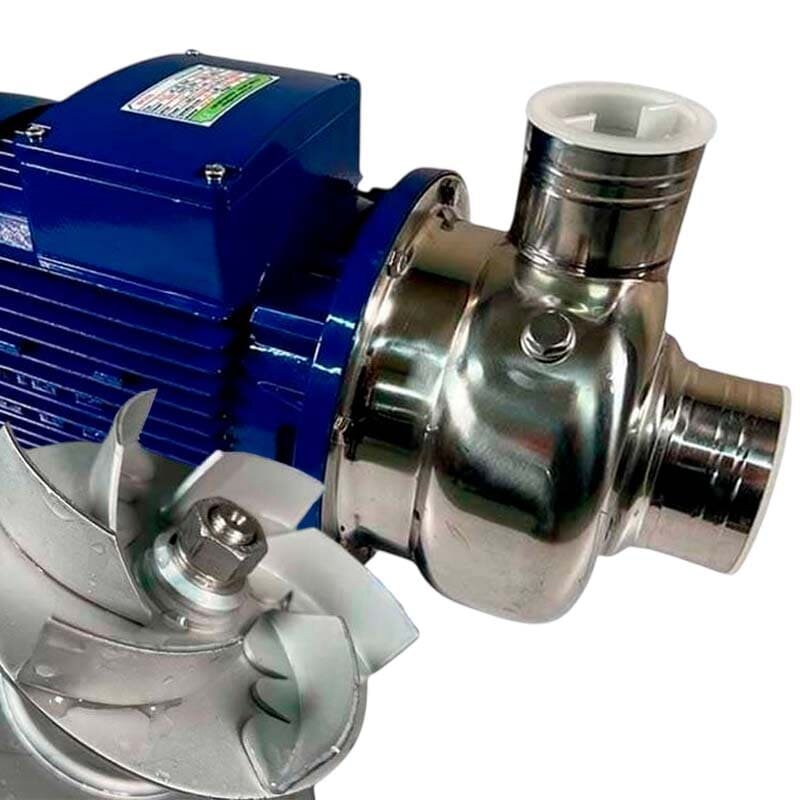

Centrifugal beer wort pump BK100, 0.75kW, AISI304, 380V/50Hz, 2900 with open impeller

Code: 1051723
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h18
Feed height, m8
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameterG1 1/2
Output pipe diameterG1 1/2
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h18
Max. head, m8
Max.temperature, C80
Material of flow channelAISI 304 stainless steel
Dimensions, mm358x170x226
Impeller typeopen impeller
Serial number of the pumpBK
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Weight, kg10,5
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Logistics center: In stock
* Delivery of goods to the warehouse
Italy: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
The BK series open impeller centrifugal pumps are used in industry for washing vegetables, fruit, meat, fish and other foodstuffs, in surface treatment of metal products, in industrial systems for washing glass containers, boxes, cans, bottles, in cooling systems, in canteen dishwashers, and in industrial laundries. In general, the open impeller centrifugal pumps of the BK series are designed for pumping both clean and fairly dirty water. The pump casing, back cover, impeller and shaft are made of AISI304 stainless steel.
ProducerBTS Engineering
Pump capacity, m3/h18
Feed height, m8
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameterG1 1/2
Output pipe diameterG1 1/2
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h18
Max. head, m8
Max.temperature, C80
Material of flow channelAISI 304 stainless steel
Dimensions, mm358x170x226
Impeller typeopen impeller
Serial number of the pumpBK
Country of OriginChina
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
Weight, kg10,5

Download instructions, catalog for Centrifugal beer wort pump BK100, 0.75kW, AISI304, 380V/50Hz, 2900 with open impeller
