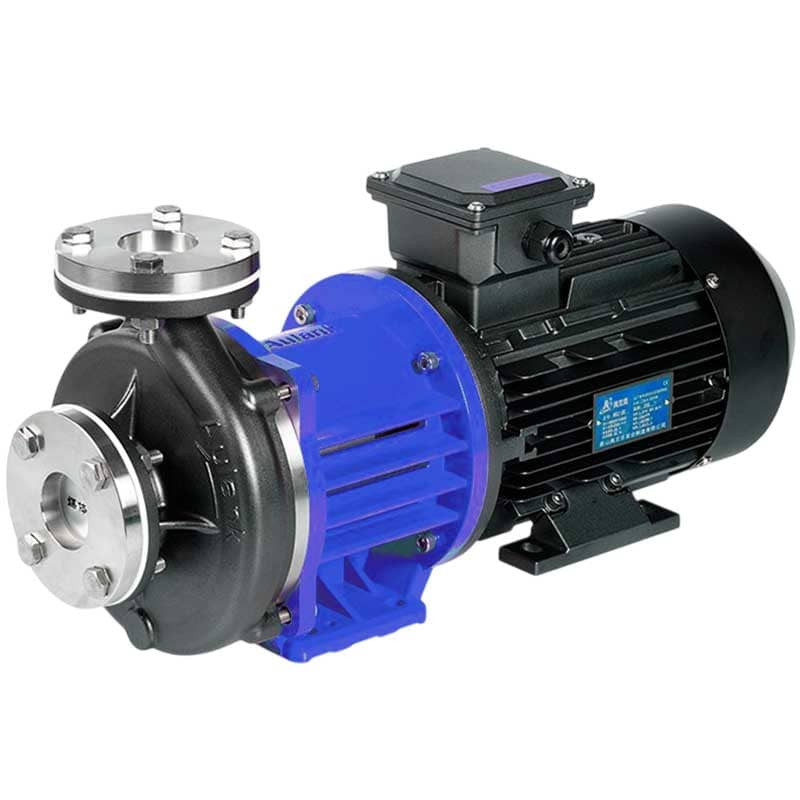

Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C
Click image for a larger view
Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C
Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C
Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C

Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C

Code: 1039230
(0 review)
Temperature (min), °C-50
ProducerALUNAK
Pump capacity, cu.m/hour4
Feed height, m15
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameterDN 32
Output pipe diameterDN 25
Rate of turn, rpm2 760
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h4
Max.temperature, C400
Nom.head, m15
Pressure, bar20
Flow rate, l/min67
Serial number of the pumpMDZ
Country of OriginChina
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Weight, kg28
Show all features (22)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1 589,96 (netto)
Добавить в сравнение
We deliver anywhere in the world
MDZ -50°C+400°C magnetic drive pump adopts advanced design principle and production technology. Circulation medium: water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil, refrigerant, gasoline and other liquids without particles and fibers. Dynamic sealing is changed to static through magnetic conduction between the insulating cover and the magnet, which ensure stable operation in high and low temperature conditions. Applications: high-temperature thermoform for temperature control, high-low temperature testing device, chemical equipment, pattern temperature control, high-quality cleaning equipment, high-temperature condensate processing.
Categories: Chemical magnetic pumpHigh temperature pump +400°CCryogenic pump for liquids -196 °CHot water pumpPump for thermal oil boilerEthylene glycol pump
Temperature (min), °C-50
ProducerALUNAK
Pump capacity, cu.m/hour4
Feed height, m15
Power capacity, kW0,75
MaterialAISI 304 stainless steel
Input pipe diameterDN 32
Output pipe diameterDN 25
Rate of turn, rpm2 760
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h4
Max.temperature, C400
Nom.head, m15
Pressure, bar20
Flow rate, l/min67
Serial number of the pumpMDZ
Country of OriginChina
PumpTypewith magnetic coupling
Drive Typeelectric
Installation Typehorizontal
Weight, kg28

Download instructions, catalog for Stainless steel magnetic coupling pump MDZ-10 -50°C+400°C
