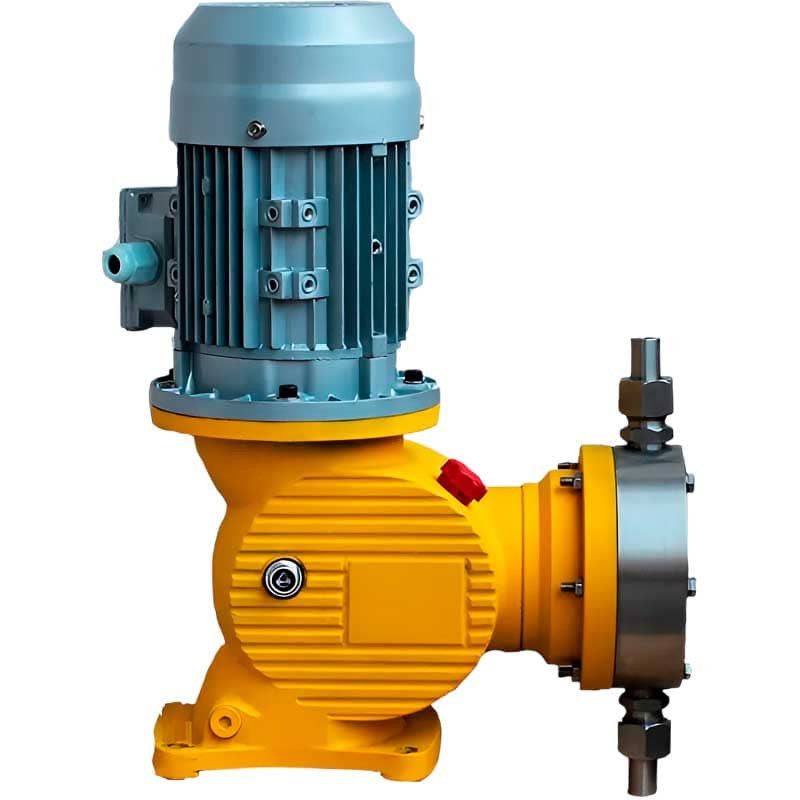

GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump
Click image for a larger view
GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump
GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

Code: 1023403
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h0.76
Power capacity, kW0,75
MaterialAISI 316 stainless steel
Power supply3х380 V, 50 Hz
Explosion protectionYes
ATEX standardEExd IIBT4
Pressure, bar5
Operating temperature-20°C + 90°C
Flow rate, l/h760
Diaphragm diameter, mm148
ConnectionRC1" F
Diaphragm stroke per min.144
Serial number of the pumpGB
Country of OriginChina
PumpTypemembrane motor
Drive Typeelectric
Show all features (17)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2 951 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
The GB series diaphragm metering pumps are robust and reliable motor-driven diaphragm metering pumps. The diaphragm is a five-layer PTFE composite diaphragm with a reinforced back plate. It is a reliable pump with a long service life. Both the stroke length and stroke speed can be adjusted to change the pump performance. It is an ideal pump for pumping and injecting chemicals in water treatment systems.
Category: Motor diaphragm pump dispenser
ProducerBTS Engineering
Pump capacity, m3/h0.76
Power capacity, kW0,75
MaterialAISI 316 stainless steel
Power supply3х380 V, 50 Hz
Explosion protectionYes
ATEX standardEExd IIBT4
Pressure, bar5
Operating temperature-20°C + 90°C
Flow rate, l/h760
Diaphragm diameter, mm148
ConnectionRC1" F
Diaphragm stroke per min.144
Serial number of the pumpGB
Country of OriginChina
PumpTypemembrane motor
Drive Typeelectric
