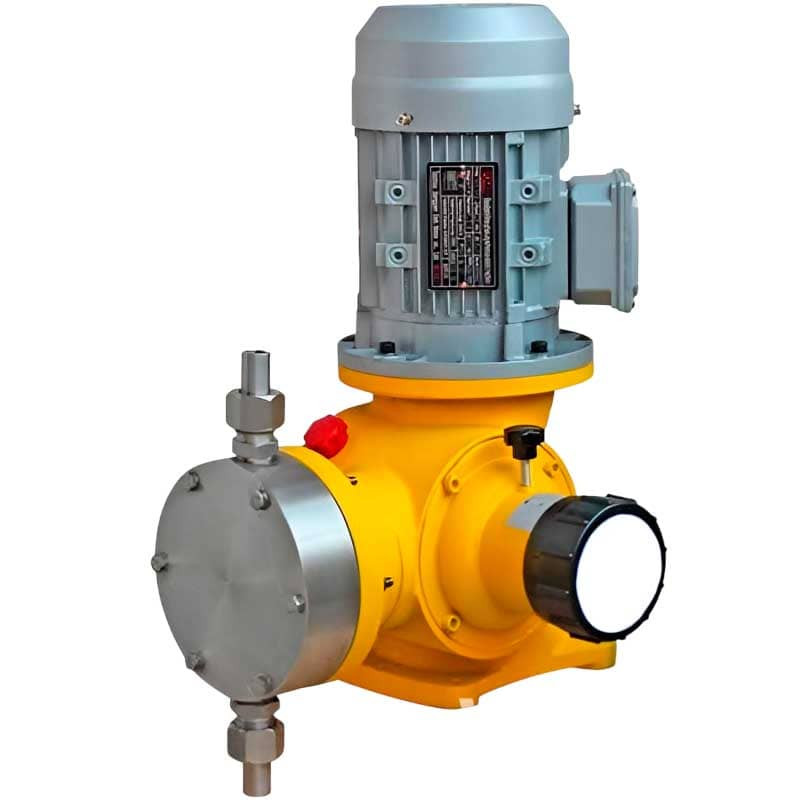

GM240/0.5, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump
Click image for a larger view
GM240/0.5, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump
GM240/0.5, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

GM240/0.5, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

Code: 1023396
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h0.24
Power capacity, kW0,37
MaterialAISI 316 stainless steel
Power supply3х380 V, 50 Hz
Explosion protectionYes
ATEX standardEExd IIBT4
Pressure, bar5
Operating temperature-20°C + 90°C
Flow rate, l/h240
Diaphragm diameter, mm112
ConnectionDN15
Diaphragm stroke per min.96
Serial number of the pumpGM
Country of OriginChina
PumpTypemembrane motor
Drive Typeelectric
Show all features (17)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1 889 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
The GB series diaphragm metering pumps are robust and reliable motor-driven diaphragm metering pumps. The diaphragm is a five-layer PTFE composite diaphragm with a reinforced back plate. It is a reliable pump with a long service life. Both the stroke length and stroke speed can be adjusted to change the pump performance. It is an ideal pump for pumping and injecting chemicals in water treatment systems.
Category: Motor diaphragm pump dispenser
ProducerBTS Engineering
Pump capacity, m3/h0.24
Power capacity, kW0,37
MaterialAISI 316 stainless steel
Power supply3х380 V, 50 Hz
Explosion protectionYes
ATEX standardEExd IIBT4
Pressure, bar5
Operating temperature-20°C + 90°C
Flow rate, l/h240
Diaphragm diameter, mm112
ConnectionDN15
Diaphragm stroke per min.96
Serial number of the pumpGM
Country of OriginChina
PumpTypemembrane motor
Drive Typeelectric
