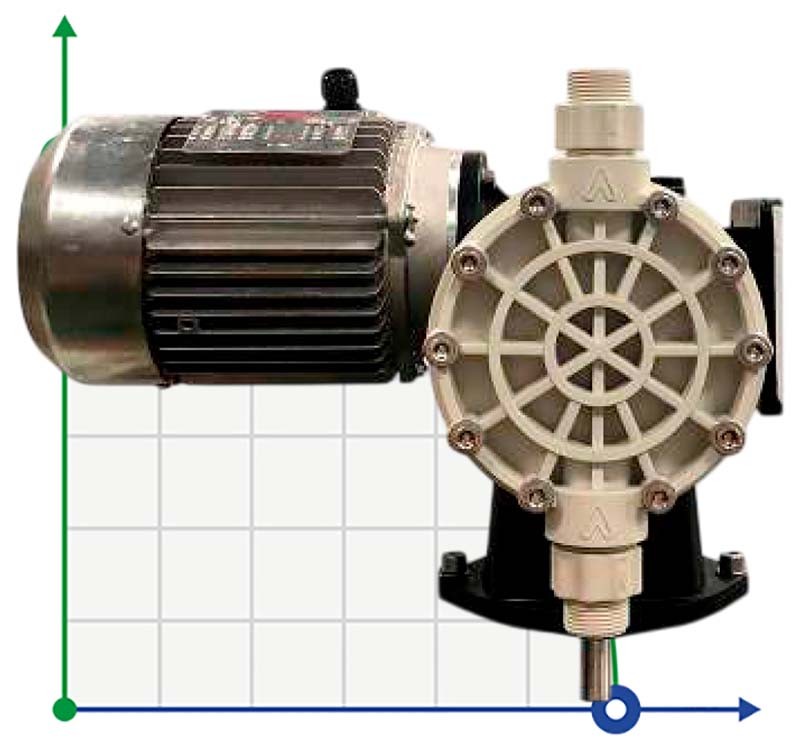

Diaphragm dosing pump for mixing chemical liquids AQUA MVN, PP, 252 l/h, 5 bar, 0.55 kW, 380V

Code: MVN0252BB00300
(0 review)
Meterial of head pumpPP
Diameter of ball valves, mm17
Material of the ball cage guidePP
Diaphragm materialPTFE
Material of the connectionPVC
ProducerAQUA
Pump capacity, cu.m/hour0.252
Power capacity, kW0,55
MaterialPP
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Pressure, bar5
Material of O-ringVITON
Material of ball valvesPYREX
Material of valve seatPVC
Flow rate, l/h252
Diaphragm stroke length, mm6
Diaphragm diameter, mm140
Connection1-1/4" Bsp M
Diaphragm stroke per min.106
Serial number of the pumpMV
Country of OriginItaly
PumpTypemembrane motor
Drive Typeelectric
Analogue forSeko, Jesco Pump, AQUA, Injecta, OBL, FWT, PRODOSE, DOSITEC, Milwaukee, WILDEN, ProMinent, Grundfos, MILTON ROY, Sera, Emec, Astralpool
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$1 516,86 (netto)
Добавить в сравнение
We deliver anywhere in the world
The AQUA MV series pumps are diaphragm motor-driven metering pumps designed for installation with agitators. The MV metering pump is suitable for applications where it is necessary to mix water and powder to create a product to be dosed. Mounted on a tank, by influencing the stroke length, it can first mix and then aspirate the product into the tank. The MV pump is used in the beverage industry (wine, beer, fruit juices) for dosing diatomaceous earth or for dosing diatomite or polyelectrolytes with a maximum viscosity of 1800-2000 cps. The MV pumps are manufactured to high quality standards, are easy to use and require minimal maintenance. The liquid to be dosed is separated from the mechanism by a diaphragm. This, in addition to dosing, protects the mechanism from the negative effects of the dosed liquid. The MV pumps have an output shaft for connecting an agitator. Accuracy +/- 2% from 10% to 100% of the nominal flow. Standard micrometric manual adjustment, 1 mm per revolution. Adjustment 0-100% during operation or when the pump is stopped. Possibility of interrupting the liquid flow without stopping the mixer. The pump can be installed on the tank thanks to the lower connecting flange.
Meterial of head pumpPP
Diameter of ball valves, mm17
Material of the ball cage guidePP
Diaphragm materialPTFE
Material of the connectionPVC
ProducerAQUA
Pump capacity, cu.m/hour0.252
Power capacity, kW0,55
MaterialPP
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Pressure, bar5
Material of O-ringVITON
Material of ball valvesPYREX
Material of valve seatPVC
Flow rate, l/h252
Diaphragm stroke length, mm6
Diaphragm diameter, mm140
Connection1-1/4" Bsp M
Diaphragm stroke per min.106
Serial number of the pumpMV
Country of OriginItaly
PumpTypemembrane motor
Drive Typeelectric
Analogue forSeko, Jesco Pump, AQUA, Injecta, OBL, FWT, PRODOSE, DOSITEC, Milwaukee, WILDEN, ProMinent, Grundfos, MILTON ROY, Sera, Emec, Astralpool

Download instructions, catalog for Diaphragm dosing pump for mixing chemical liquids AQUA MVN, PP, 252 l/h, 5 bar, 0.55 kW, 380V
