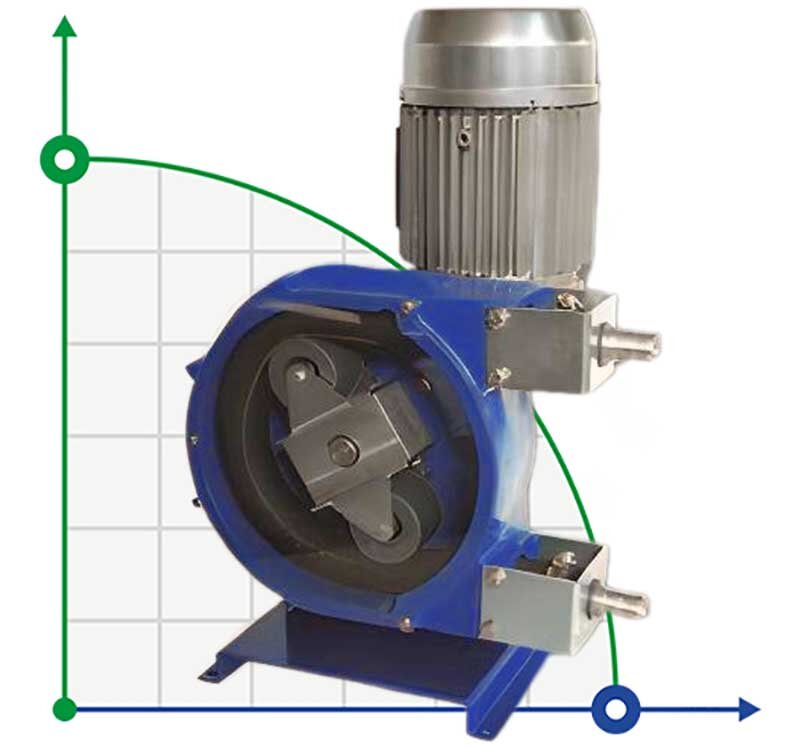

Peristaltic pump for solutions FLUIMAC HELIOS ASP 32 FX 1974 l/h, 1.1 kW, 47 rpm

Code: 1049726
(0 review)
Flow Rate, L/rev0,7
Inner diameter of the pump hose, mm32
ProducerFLUIMAC
Pump capacity, cu.m/hour1974
Feed height, m80
Power capacity, kW1,1
Rate of turn, rpm47
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h1974
Max. head, m80
Suction capacity (NPSH), m8
Flow rate, l/h1974
Hose standard size32x62
Product regulation 0-100%No
Serial number of the pumpHELIOS ASP
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsYes
Warranty, months12
Applicationmisalignment, liquid powders, antisepsis, chemistry, coagulant, alkalis, acid
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$8 639,16 (netto)
Добавить в сравнение
We deliver anywhere in the world
Peristaltic pumps of the HELIOS ASP series of the Italian company FLUIMAC are used for precise dosing of abrasive products, acids, viscous and dense liquids. Peristaltic pumps have a long service life and increased reliability. They work in self-suction mode. Continuous operation in dry mode. Quick and easy maintenance. The main working elements of a hose pump are a hose made of flexible material and rollers that run over it and compress it. When rotating the shaft on which the rollers are fixed, the compressed section of the hose moves and moves portions of liquid from the suction part to the discharge part. The shaft and rollers do not come into contact with the liquid, which allows aggressive solutions to be pumped, hose materials must be selected in accordance with the pumped product.
Flow Rate, L/rev0,7
Inner diameter of the pump hose, mm32
ProducerFLUIMAC
Pump capacity, cu.m/hour1974
Feed height, m80
Power capacity, kW1,1
Rate of turn, rpm47
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h1974
Max. head, m80
Suction capacity (NPSH), m8
Flow rate, l/h1974
Hose standard size32x62
Product regulation 0-100%No
Serial number of the pumpHELIOS ASP
Country of OriginItaly
PumpTypeperistaltic
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsYes
Warranty, months12
Applicationmisalignment, liquid powders, antisepsis, chemistry, coagulant, alkalis, acid

Download instructions, catalog for Peristaltic pump for solutions FLUIMAC HELIOS ASP 32 FX 1974 l/h, 1.1 kW, 47 rpm
