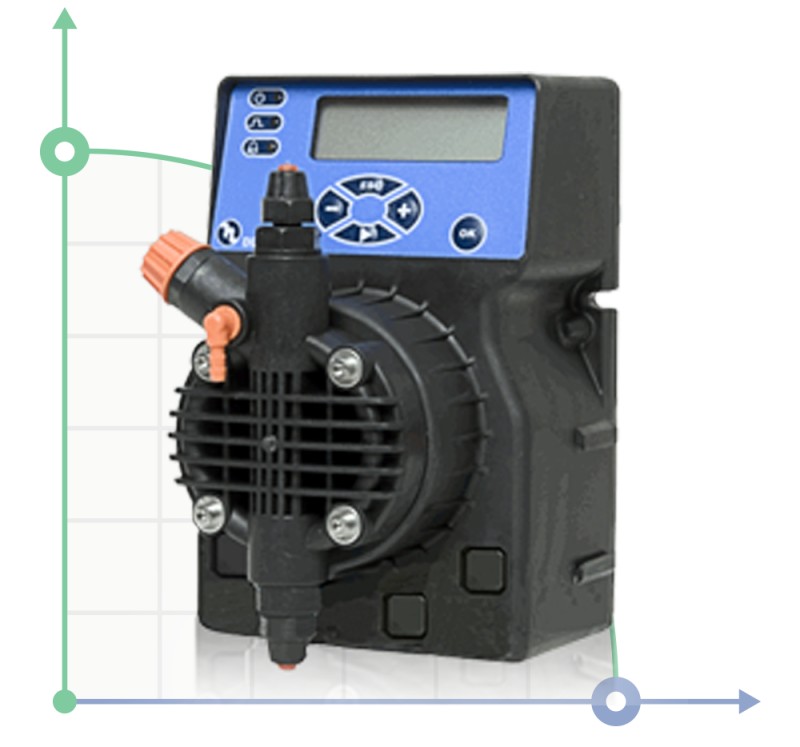

Name: Dosing pump PDE DLX PH-RX-CL/M 15-4 230V/240V
Brand: ETATRON D.S.
SKU: PLX2723101

Dosing pump PDE DLX PH-RX-CL/M 15-4 230V/240V

Click image for a larger view

Code: PLX2723101

(0 review)

Producer	ETATRON D.S.
Material	PP
Power supply	1х220 V, 50 Hz
Pressure, bar	4
Power capacity, Wt	58
Model	pH-Rx-Cl/M
Pump body material	Polypropylene
Flow rate, l/h	15
Number of pulses	120
Control	Microprocessing
Dosage mode: Continually ON-OFF	Yes
Dosage mode: proportional PROP	Yes
Product regulation 0-100%	Yes
Input for level sensor reagent	Yes
Input 4-20 mA	No
Pulse input(From Flowmetwer)	No
Input foe sensor PH	Yes
Input for sensor RX	Yes
Input foe sensor	Yes
Input for sensor CD	No
Input foe temperature sensor	Yes
Input mA	Yes
Output service relay	Yes
Support for flow sensor	No
Length of a pistone stroke, mm	2,2
Serial number of the pump	DLX
Country of Origin	Italy
PumpType	dosing solenoid
Drive Type	electric
Availability of spare parts	Yes
Application	hypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue for	ASeko, Descon trol S, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg	2,9

Show all features (33)

Documentation

Description Dosing pump PDE DLX PH-RX-CL/M 15-4 230V/240V

- Dosing pump with integrated ph / RedOx / Cl controller (optional). - Dosage regimens: proportional PROP. or constant ON /OFF. - Measuring range: 0-14 pH; -1000 + 1400 mV; 0-20 ppm (mg/l). - Backlit LCD display. - Three status display indicators. - 5 touch buttons for selecting pump operation modes. - Output 4-20 mA. - On/off relay output for emergency alarms. - Automatic temperature compensation (if there is a PT100 temperature sensor). - Support for flow and level sensors (not included).

Categories: Solenoid Diaphragm Pump Dispenser Ph Rx Cl Ec O2 µS Sodium hypochlorite dosing pump Coagulant dosing pump Oxidizer dosing pump Pump for dosing reagents Flocculant dosing pump Chlorine dosing pump Enzyme dosing pump Coagulant pumps Dosing pump for swimming pools

Features Dosing pump PDE DLX PH-RX-CL/M 15-4 230V/240V

Producer	ETATRON D.S.
Material	PP
Power supply	1х220 V, 50 Hz
Pressure, bar	4
Power capacity, Wt	58
Model	pH-Rx-Cl/M
Pump body material	Polypropylene
Flow rate, l/h	15
Number of pulses	120
Control	Microprocessing
Dosage mode: Continually ON-OFF	Yes
Dosage mode: proportional PROP	Yes
Product regulation 0-100%	Yes
Input for level sensor reagent	Yes
Input 4-20 mA	No
Pulse input(From Flowmetwer)	No
Input foe sensor PH	Yes
Input for sensor RX	Yes
Input foe sensor	Yes
Input for sensor CD	No
Input foe temperature sensor	Yes
Input mA	Yes
Output service relay	Yes
Support for flow sensor	No
Length of a pistone stroke, mm	2,2
Serial number of the pump	DLX
Country of Origin	Italy
PumpType	dosing solenoid
Drive Type	electric
Availability of spare parts	Yes
Application	hypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue for	ASeko, Descon trol S, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg	2,9
