Name: Dosing pump DLXB-MA/MB 1-15 230V PVDF R/C (1-15/2-10/3-5) (with adjustable piston stroke length)
Brand: ETATRON D.S.
SKU: PBX242228F

Dosing pump DLXB-MA/MB 1-15 230V PVDF R/C (1-15/2-10/3-5) (with adjustable piston stroke length)

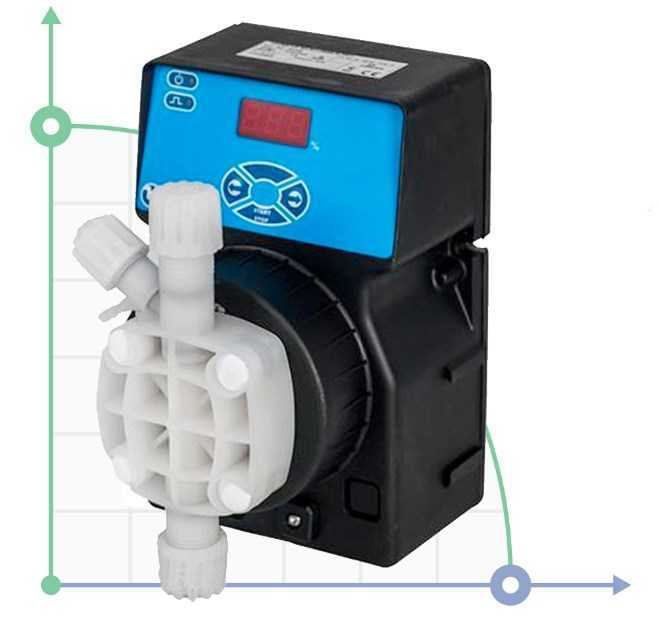

Click image for a larger view

Code: PBX242228F

(0 review)

Producer	ETATRON D.S.
Material	PVDF
Power supply	1х220 V, 50 Hz
Power capacity, Wt	37 W 0,16А
Model	MA/MB
Pump body material	PVDF
Number of pulses	120
Control	Microprocessing
Dosage mode: Continually ON-OFF	Yes
Dosage mode: proportional PROP	No
Product regulation 0-100%	Yes
Input for level sensor reagent	Yes
Input 4-20 mA	No
Pulse input(From Flowmetwer)	No
Input foe sensor PH	No
Input for sensor RX	No
Input foe sensor	No
Input for sensor CD	No
Input foe temperature sensor	No
Input mA	No
Output service relay	No
Support for flow sensor	No
Length of a pistone stroke, mm	0,8
Serial number of the pump	DLX
Country of Origin	Italy
Availability of spare parts	Yes
Application	acid, hypochlorite, algaecide, alkalis, caustic, coagulant, of hydrochloric acid
Analogue for	ASeko, Descon trol S, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg	2,3

Show all features (29)

Documentation

Description Dosing pump DLXB-MA/MB 1-15 230V PVDF R/C (1-15/2-10/3-5) (with adjustable piston stroke length)

- Microprocessor-controlled diaphragm dosing pump with metering volume change function • 3-digit display - Constant ON/OFF dosing mode - Manual adjustment of output 0÷100% with a step of 1% and volume (R / C) - Three indicators for displaying the work status - Start/stop button - Memory for the set operating mode - With level sensor support (sensors are not included) The pump allows not only to adjust the output of 0÷100% (change in the frequency of pump pulses), but also to adjust the stroke length (R/C) (change in the volume of pump pulses)

Category: Solenoid Diaphragm Pump Dispenser Ph Rx Cl Ec O2 µS

Features Dosing pump DLXB-MA/MB 1-15 230V PVDF R/C (1-15/2-10/3-5) (with adjustable piston stroke length)

Producer	ETATRON D.S.
Material	PVDF
Power supply	1х220 V, 50 Hz
Power capacity, Wt	37 W 0,16А
Model	MA/MB
Pump body material	PVDF
Number of pulses	120
Control	Microprocessing
Dosage mode: Continually ON-OFF	Yes
Dosage mode: proportional PROP	No
Product regulation 0-100%	Yes
Input for level sensor reagent	Yes
Input 4-20 mA	No
Pulse input(From Flowmetwer)	No
Input foe sensor PH	No
Input for sensor RX	No
Input foe sensor	No
Input for sensor CD	No
Input foe temperature sensor	No
Input mA	No
Output service relay	No
Support for flow sensor	No
Length of a pistone stroke, mm	0,8
Serial number of the pump	DLX
Country of Origin	Italy
Availability of spare parts	Yes
Application	acid, hypochlorite, algaecide, alkalis, caustic, coagulant, of hydrochloric acid
Analogue for	ASeko, Descon trol S, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg	2,3
