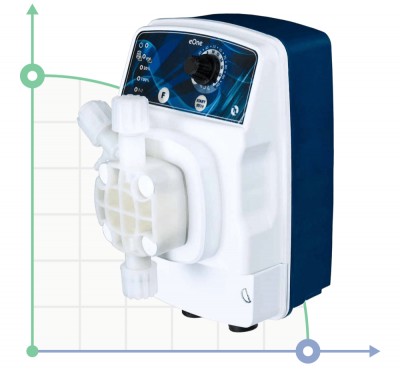

Dosing pump PDE eONE MА 10-12 100/250V

Code: PEU453954I
(0 review)
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
Pressure, bar12
Power capacity, Wt10/32 Вт 1,8А
Model
Pump body materialPVDF
Flow rate, l/h10
Number of pulses300
ControlManual
Dosage mode: Continually ON-OFFYes
Dosage mode: proportional PROPYes
Product regulation 0-100%Yes
Input for level sensor reagentYes
Input 4-20 mANo
Pulse input(From Flowmetwer)Yes
Input foe sensor PHNo
Input for sensor RXNo
Input foe sensorNo
Input for sensor CDNo
Input foe temperature sensorNo
Input mANo
Output service relayNo
Support for flow sensorNo
Impulse volume0,5600000000000001
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsYes
Applicationhypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue forDescon trol S, ASeko, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg3,5
Show all features (33)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$606 (netto)
Добавить в сравнение
We deliver anywhere in the world
Dosage mode: - Manual ON /OFF with a double scale of 10-100% and 2-20% performance adjustment (a micro-controller is used for clearer adjustment of pump performance) - Proportional to 1:1 from the pulse flow meter (one received pulse from the flow meter = 1 pump injection). The pump is equipped with protection functions (on/off): UNDERLOAD-monitoring the absence of the dosed reagent on the intake line; OVERLOAD – monitoring the excess of the permissible back pressure in the system. Maximum pulse frequency 300 imp / min Power consumption 26 W (varies depending on the back pressure) Level sensor support (sensor not included).
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
Pressure, bar12
Power capacity, Wt10/32 Вт 1,8А
Model
Pump body materialPVDF
Flow rate, l/h10
Number of pulses300
ControlManual
Dosage mode: Continually ON-OFFYes
Dosage mode: proportional PROPYes
Product regulation 0-100%Yes
Input for level sensor reagentYes
Input 4-20 mANo
Pulse input(From Flowmetwer)Yes
Input foe sensor PHNo
Input for sensor RXNo
Input foe sensorNo
Input for sensor CDNo
Input foe temperature sensorNo
Input mANo
Output service relayNo
Support for flow sensorNo
Impulse volume0,5600000000000001
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsYes
Applicationhypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue forDescon trol S, ASeko, AquaViva, Seko, Injecta, Emec, FWT
Weight, kg3,5
