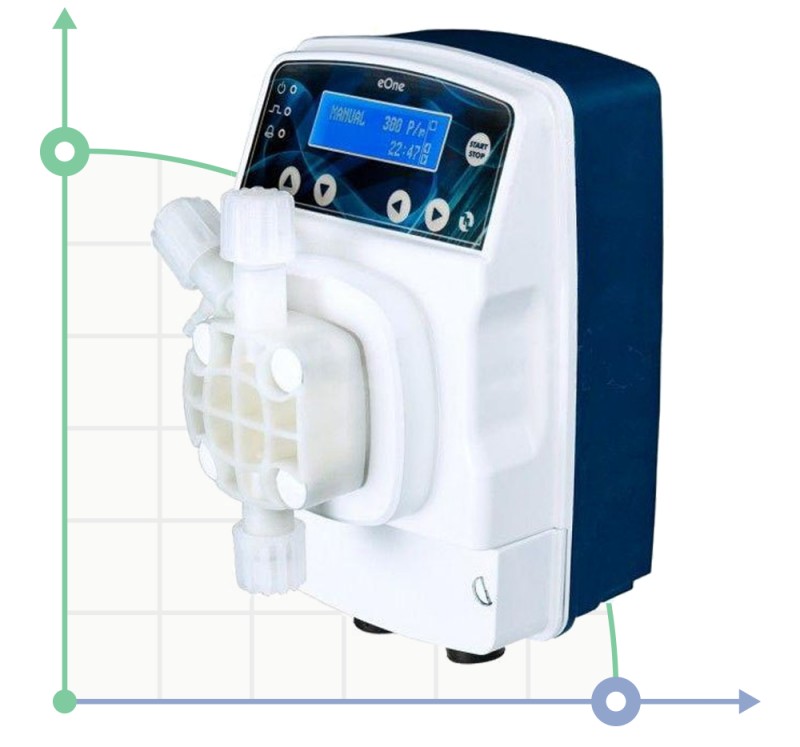

Dosing pump PDE eONE PLUS 07-10 100/250V

Code: PEU463944I
(0 review)
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
Pressure, bar10
Power capacity, Wt7/26
ModelPLUS
Pump body materialPVDF
Flow rate, l/h7
Number of pulses300
ControlMicroprocessing
Dosage mode: Continually ON-OFFYes
Dosage mode: proportional PROPYes
Product regulation 0-100%Yes
Input for level sensor reagentYes
Input 4-20 mAYes
Pulse input(From Flowmetwer)Yes
Input foe sensor PHYes
Input for sensor RXYes
Input foe sensorYes
Input for sensor CDNo
Input foe temperature sensorYes
Input mAYes
Output service relayYes
Support for flow sensorYes
Impulse volume0,39
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsYes
Applicationhypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue forASeko, Descon trol S, AquaViva, Injecta, Seko, Emec, FWT
Weight, kg4,5
Show all features (33)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$771 (netto)
Добавить в сравнение
We deliver anywhere in the world
Digital multi-function proportional dosing pump with integrated pH/RedOx/Cl/ppm controller. Backlit liquid crystal display. The maximum pulse frequency is 300 imp/min. A procedure for calibrating a specific pulse for specific needs. Dosage regimens: - Manual ON/OFF - Proportional PROP. Plus all the main modes and functions of the eONE-MF pump (see the description above). Measuring range: 0-14 pH; -1000+1400 mV (RedOx); 0-2, 0-20, 0-200 mg/l (chlorine), 0-2, 0-20, 0-200 ppm (parts per millionth). Setting the pump start-up delay time. Manual (25 ° C by default) or automatic temperature compensation (when connecting the PT100 temperature sensor). MAX alarm system. reagent concentrations. Alarm system MIN. reagent concentrations. Continuous dosing time alarm. The output is 4-20 mA. ON/OFF relay output for alarm system. Support for output flow and level sensors (sensors are not included). Power consumption-26 W (varies depending on
ProducerETATRON D.S.
MaterialPVDF
Power supply1х220 V, 50 Hz
Pressure, bar10
Power capacity, Wt7/26
ModelPLUS
Pump body materialPVDF
Flow rate, l/h7
Number of pulses300
ControlMicroprocessing
Dosage mode: Continually ON-OFFYes
Dosage mode: proportional PROPYes
Product regulation 0-100%Yes
Input for level sensor reagentYes
Input 4-20 mAYes
Pulse input(From Flowmetwer)Yes
Input foe sensor PHYes
Input for sensor RXYes
Input foe sensorYes
Input for sensor CDNo
Input foe temperature sensorYes
Input mAYes
Output service relayYes
Support for flow sensorYes
Impulse volume0,39
Serial number of the pumpeONE
Country of OriginItaly
PumpTypedosing solenoid
Drive Typeelectric
Availability of spare partsYes
Applicationhypochlorite, algaecide, acid, alkalis, caustic, coagulant, of hydrochloric acid
Analogue forASeko, Descon trol S, AquaViva, Injecta, Seko, Emec, FWT
Weight, kg4,5
