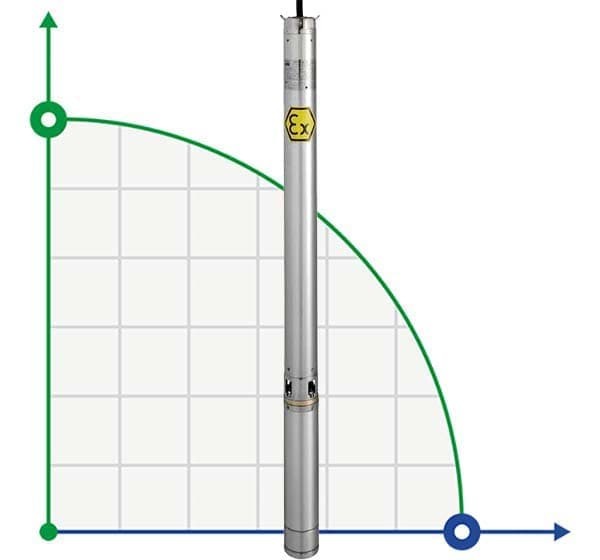

Submersible downhole pump 4 inch ATEX THETA EX 37, 220V

Code: 1035698
(0 review)
Diameter of pump4" (100 mm)
ProducerOFT Pumps
Pump capacity, cu.m/hour1.8
Feed height, m210
Power capacity, kW1,1
Output pipe diameter1" 1/4
Rate of turn, rpm2 850
ProtectionIP68
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h1.8
Max. head, m210
Max.temperature, C40
Impeller materialtechnopolymer
Height, mm1 417
Motor capacitor capacity, µF40
Serial number of the pumpTHETA EX
Country of OriginItaly
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg19
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
ATEX pumps in accordance with Directive 2014/34 / EC can be installed in explosive environments in accordance with the ATEX marking. Features: multi-stage centrifugal electric submersible pumps for 4-inch Wells; external pump body, discharge port, suction port, shaft and other stainless steel components; stainless steel check valve installed in the discharge head; pumped liquid temperature: no more than + 40 °C; available version for permanent immersion in bicarbonates (ID EX series); available in Aisi 316 version. Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm.; Class F insulation; IP68 protection; operating voltage: single-phase 220V, three-phase 380V. Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with 5, 10 or 20 m long electrical cable, ATEX electronic level sensor (or ATEX id), electrical cable for connection according to the selected version and pumped liquid.
Diameter of pump4" (100 mm)
ProducerOFT Pumps
Pump capacity, cu.m/hour1.8
Feed height, m210
Power capacity, kW1,1
Output pipe diameter1" 1/4
Rate of turn, rpm2 850
ProtectionIP68
Power supply1х220 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h1.8
Max. head, m210
Max.temperature, C40
Impeller materialtechnopolymer
Height, mm1 417
Motor capacitor capacity, µF40
Serial number of the pumpTHETA EX
Country of OriginItaly
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg19
