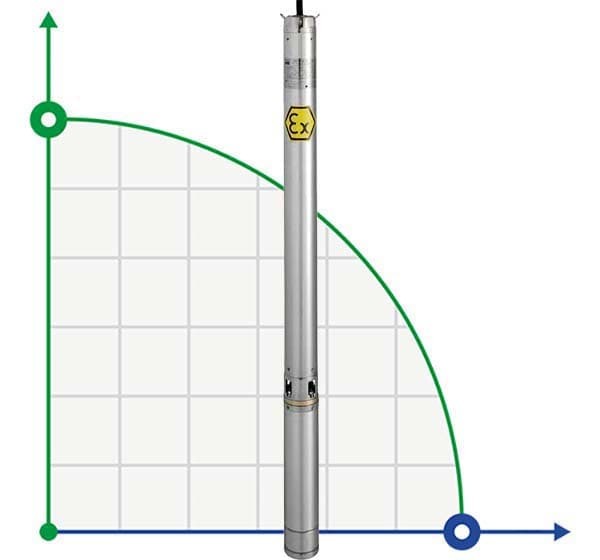

Submersible downhole pump 4 inch ATEX VENERE EX 14, 380V

Code: 1035766
(0 review)
Diameter of pump4" (100 mm)
ProducerOFT Pumps
Pump capacity, cu.m/hour8.4
Feed height, m74
Power capacity, kW1,1
Output pipe diameter1" 1/4
Rate of turn, rpm2 850
ProtectionIP68
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h8.4
Max. head, m74
Max.temperature, C40
Height, mm875
Serial number of the pumpVENERE EX
Country of OriginItaly
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg17,2
Show all features (21)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
Price on request
Добавить в сравнение
We deliver anywhere in the world
Pump application: ATEX pumps in accordance with Directive 2014/34 / EC can be installed in explosive environments in accordance with the ATEX marking. Features: multi-stage centrifugal electric submersible pumps for 4-inch Wells; external pump body, discharge port, suction port, shaft and other stainless steel components; stainless steel check valve installed in the discharge head; pumped liquid temperature: no more than + 40 °C; available version for permanent immersion in bicarbonates (ID EX series); available in Aisi 316 version. Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm.; Class F insulation; IP68 protection; operating voltage: single-phase 220V, three-phase 380V. Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with electrical cable length 5, 10 or 20 m, ATEX electronic level sensor (or ID ATEX), Max filter 142, Maxifilter 170, also available with inclined riser for inclined Wells, electrical cable for connection according to the selected version and pumped liquid.
Diameter of pump4" (100 mm)
ProducerOFT Pumps
Pump capacity, cu.m/hour8.4
Feed height, m74
Power capacity, kW1,1
Output pipe diameter1" 1/4
Rate of turn, rpm2 850
ProtectionIP68
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.flow rate, m3/h8.4
Max. head, m74
Max.temperature, C40
Height, mm875
Serial number of the pumpVENERE EX
Country of OriginItaly
PumpTypeborehole
Drive Typeelectric
Installation Typevertical
Warranty, months12
Weight, kg17,2
