Name: Borehole pump YSP CI 6003/12, 5.5 kW, 380V
Brand: Yildizsu
SKU: 1041368

Product list

Home
PROM-NASOS - Pumps
Industrial pumps
Submersible drainage sump pump
Borehole pump YSP CI 6003/12, 5.5 kW, 380V

Borehole pump YSP CI 6003/12, 5.5 kW, 380V

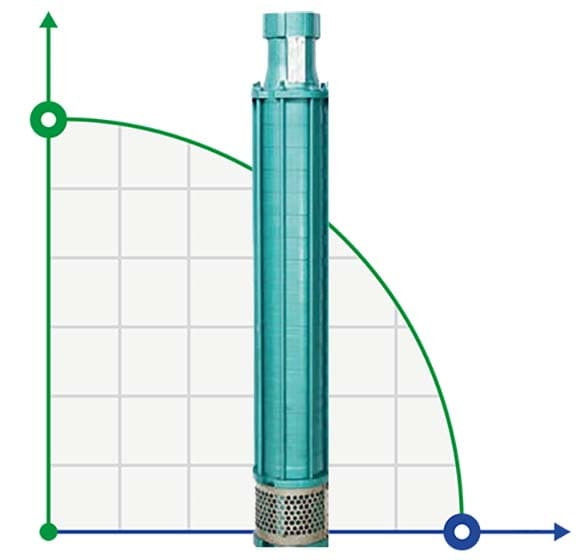

Click image for a larger view

Code: 1041368

(0 review)

Diameter of pump	6" (150 mm)
Producer	Yildizsu
Pump capacity, cu.m/hour	16
Feed height, m	131
Power capacity, kW	5,5
Output pipe diameter	2"
Rate of turn, rpm	2 900
Protection	IP 68
Power supply	3х380 V, 50 Hz
Explosion protection	No
Max.flow rate, m3/h	16
Max. head, m	131
Max.temperature, C	30
Nom.flow rate, m3/h	12
Nom.head, m	100
Diameter, mm	143
Housing material	Сast iron
Length, mm	752
Serial number of the pump	YSP CI
Country of Origin	Turkey
PumpType	borehole
Drive Type	electric
Installation Type	vertical
Weight, kg	21,1

Show all features (24)

Description Borehole pump YSP CI 6003/12, 5.5 kW, 380V

Analog of ECV 6-10-110. YSP CI borehole pumps can be used in difficult conditions where high reliability of equipment is required, namely: in high-pressure water supply systems; in irrigation and fire extinguishing systems; at water treatment plants; in filtration and desalination of seawater; in industrial cooling; in the mining industry.
