IRG BGL 100-200B (87/38), 15kW, 2880 centrifugal vertical pump

Code: 1025507
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h87
Feed height, m38
Power capacity, kW15
Materialcast iron
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h87
Nom.head, m38
Dimensions, mm480x430x820
Serial number of the pumpBGL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationirrigation, irrigation systems, for systems of water supply, extinguishing, water, cooling tower
Weight, kg193
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1 635 (netto)
Добавить в сравнение
We deliver anywhere in the world
Applications: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, water treatment systems, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for boiler power supply due to reliable design pumps, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is planned to pump a liquid, the density and / or viscosity of which differs from the same parameters of water, then due to changes in hydraulic power, it is necessary to take into account the required power of the motor in this case. Analogs: WILO IL, GRUNDFOS TP, Sprut 3VP, Calpeda NR / NRM, DAB ALM-ALP, ALME-ALPE, CM-DCM, CP-DCP, KLM-KLP- DKLM-DKLP, KLME-KLPE-DKLME-D
ProducerBTS Engineering
Pump capacity, m3/h87
Feed height, m38
Power capacity, kW15
Materialcast iron
Input pipe diameter100
Output pipe diameter100
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h87
Nom.head, m38
Dimensions, mm480x430x820
Serial number of the pumpBGL
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationirrigation, irrigation systems, for systems of water supply, extinguishing, water, cooling tower
Weight, kg193
Loading...
Also buy with this product
Pump Сontroller Y1-4000D, ABS plastic, 3-phase 380V-415V, 0,75-4kW
1042834
Producer
BTS Engineering
Power capacity, kW
0,75-4
In stock
0
$113
PN6 DN100 Wafer butterfly valve, body and disc AISI 304, PTFE, Single-acting (with spring) Pneumatic actuator Ex+positioner 4-20MA
1042673
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
Preorder
0
$1 420
Pump Сontroller 20Y-3000, ABS plastic, 1-phase 220V-240V, 0,37-3kW
1042833
Producer
BTS Engineering
Power capacity, kW
0,37-3
In stock
0
$75
DN40 Thermodynamic flanged condensate trap PN16/1.0619
1040126
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$385
DN25 Pneumatically actuated control valve 10P11Y-DNx2516Z-L112C-C (CF8 body, SS304 seat) with YT-1000 positioner, 4-20mA input, Ex
1040256
Control signal, mA
4-20
Mode of action
normally closed
Preorder
0
$1 959
PN6 DN150 Wafer butterfly valve, body and disc AISI 304, PTFE, Double acting Pneumatic actuator Ex+positioner 4-20MA
1042674
Material of the disk
AISI 304 stainless steel
Control signal, mA
4-20
In stock
0
$1 441
Control panel for pump, 4 kW
16607
Producer
BTS Engineering
Power capacity, kW
4
In stock
0
$389
PN16 DN65 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
1042540
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$57
Control panel for pump, 1.5 kW
16606
Producer
BTS Engineering
Power capacity, kW
1,5
In stock
0
$206
PN16 DN80 Butterfly valve, body and disc made of stainless steel AISI 304, Seat PTFE
1042541
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$63
Pump Сontroller Y1-7500D, ABS plastic, 3-phase 380V-415V, 1,1-7,5 kW
1042835
Producer
BTS Engineering
Power capacity, kW
1,1-7,5
In stock
0
$120
Pump Сontroller Y1-11000D, ABS plastic, 3-phase 380V-415V, 1,1-11kW
1042836
Producer
BTS Engineering
Power capacity, kW
1,1-11
In stock
0
$129
PN16 DN125 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042552
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$54
Pump Сontroller Y1-15000D, ABS plastic, 3-phase 380V-415V, 2,2-15 kW
1042837
Producer
BTS Engineering
Power capacity, kW
2,2-15
In stock
0
$150
Control panel for pump, 3 kW
16604
Producer
BTS Engineering
Power capacity, kW
3
In stock
0
$378
Pump Сontroller Y1-18500D, ABS plastic, 3-phase 380V-415V, 3-18,5kW
1042838
Producer
BTS Engineering
Power capacity, kW
3-18,5
In stock
0
$183
Pump Сontroller Y1-22000D, ABS plastic, 3-phase 380V-415V, 4-22kW
1042839
Producer
BTS Engineering
Power capacity, kW
4-22
In stock
0
$216
Control panel for pump, 5.5 kW
16610
Producer
BTS Engineering
Power capacity, kW
5,5
In stock
0
$402
PN16 DN100 Butterfly valve, cast iron body, AISI 304 disc, Seat EPDM
1042551
Material of the disk
AISI 304 stainless steel
Producer
BTS Engineering
In stock
0
$39
Control panel for pump, 2.2 kW
16605
Producer
BTS Engineering
Power capacity, kW
2,2
In stock
0
$275
Control panel for pump, 7.5 kW
16608
Producer
BTS Engineering
Power capacity, kW
7,5
In stock
0
$408
PN16 DN65 Stainless steel ball valve AISI 316, Seat: PTFE
1040107
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$266
Control panel for pump, 22 kW
16613
Producer
BTS Engineering
Power capacity, kW
22
In stock
0
$1 567
Control panel for pump, 11 kW
16609
Producer
BTS Engineering
Power capacity, kW
11
In stock
0
$421
PN16 DN50 Stainless steel ball valve AISI 316, seat PTFE
1040108
Producer
BTS Engineering
Nom.pressure, Mpa
1,6
In stock
0
$195
Control panel for pump, 18.5 kW
16612
Producer
BTS Engineering
Power capacity, kW
18,5
In stock
0
$681
Control panel for pump, 15 kW
16611
Producer
BTS Engineering
Power capacity, kW
15
Preorder
0
$564
Products from the same category
IRG BGL 100-200 (100/50), 22kW, 2880 centrifugal vertical pump
1025505
Producer
BTS Engineering
Pump capacity, m3/h
100
Pre-order only
0
$2 308
Circulation pump in-line WILO IPL 40/195-7,5/2
2121207
Producer
Wilo
Pump capacity, m3/h
36
Pre-order only
0
$1 943
IRG BGL 100-200A (93,5/44), 18,5kW, 2880 centrifugal vertical pump
1025506
Producer
BTS Engineering
Pump capacity, m3/h
93.5
Pre-order only
0
$1 939
Circulation pump in-line WILO IPL 40/75-0,12/2
2155494
Producer
Wilo
Pump capacity, m3/h
12
Pre-order only
0
$802
Circulation pump in-line WILO IPL 40/80-0,09/4
2089695
Producer
Wilo
Pump capacity, m3/h
8
Pre-order only
0
$807
Circulation pump in-line WILO IPL 40/90-0,37/2
2089584
Producer
Wilo
Pump capacity, m3/h
15
Pre-order only
0
$889
IRG BGL 100-250 (100/80), 37kW, 2880 centrifugal vertical pump
1025508
Producer
BTS Engineering
Pump capacity, m3/h
100
Pre-order only
0
$3 232
Circulation pump in-line WILO IPL 50/105-0,12/4
2150344
Producer
Wilo
Pump capacity, m3/h
18
Pre-order only
0
$1 016
IRG BGL 100-250A (93,5/70), 30kW, 2880 centrifugal vertical pump
1025509
Producer
BTS Engineering
Pump capacity, m3/h
93.5
Pre-order only
0
$3 034

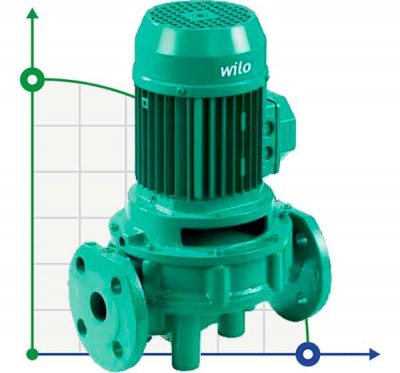

Circulation pump in-line WILO IPL 50/105-0,75/2
