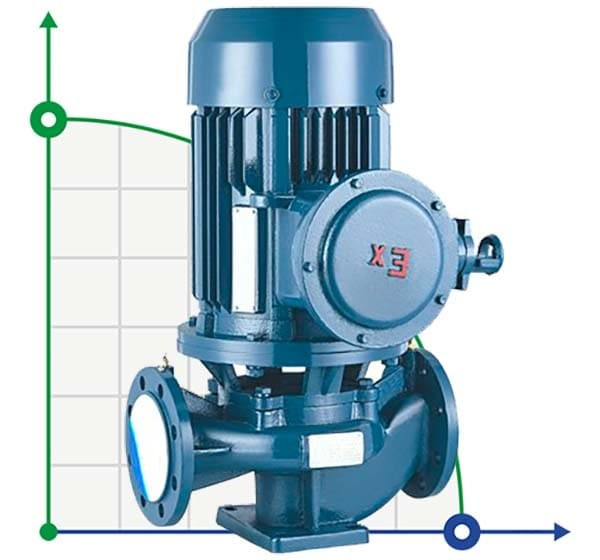

Pump for diesel fuel IRG BGLB 150-350 (160/150), 110kW, 2880 Ex

Code: 1038574
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m150
Power capacity, kW110
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h160
Nom.head, m150
Dimensions, mm700x700x1280
Serial number of the pumpBGLB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationdiesel, gasoline pumping, diesel pumping, petroleum products
Weight, kg702
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$22 691,85 (netto)
Добавить в сравнение
We deliver anywhere in the world
BGLB series pump - centrifugal explosion-proof pump for pumping diesel fuel, gasoline, petroleum products, and diesel fuel. Electric pumps centrifugal monoblock with explosion-proof motor, designed for pumping gasoline and other liquid petroleum products at temperatures from -40 to + 50°C, a density of not more than 1000 kg/m3, a viscosity of 0.55 to 100 mm2/s, with a content of solid suspended particles in the amount of not more than 0.2% and a size of not more than 0.2 mm. The pumps are designed for operation in explosive areas of premises and outdoor installations of classes where explosive mixtures of combustible gases or gasoline vapors with air belonging to categories IIA and IIB, and explosion hazard groups T1, T2, T3, T4 can form. In pumps for petroleum products or mixtures, the working bodies of the pump part are made of chrome-plated cast iron, the wheel in two versions is cast iron or stainless steel O-rings and a mechanical seal made of resistant rubber, a special mechanical seal is used.
ProducerBTS Engineering
Pump capacity, cu.m/hour160
Feed height, m150
Power capacity, kW110
Materialcast iron
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelcast iron
Nom.flow rate, m3/h160
Nom.head, m150
Dimensions, mm700x700x1280
Serial number of the pumpBGLB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationdiesel, gasoline pumping, diesel pumping, petroleum products
Weight, kg702
