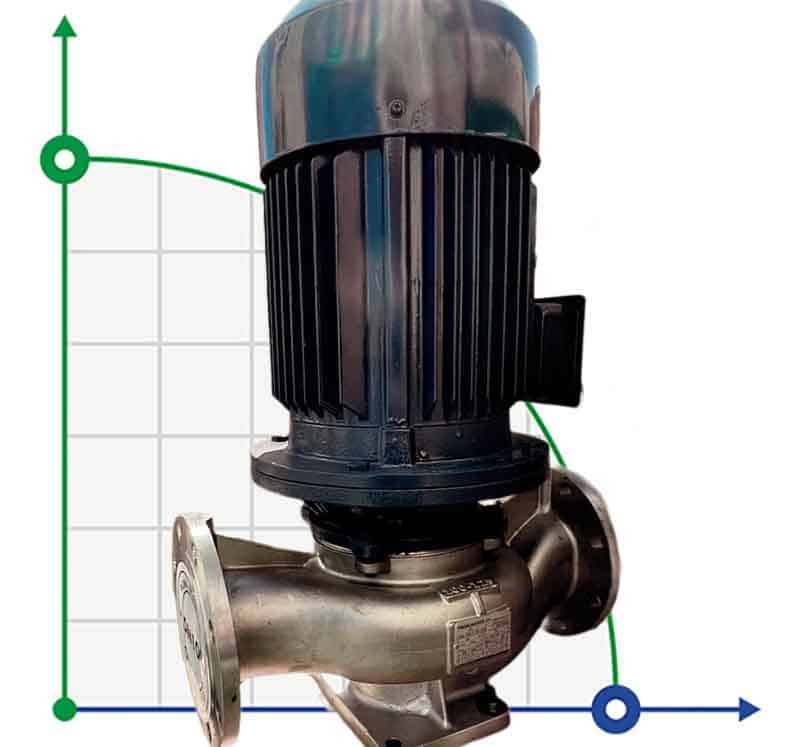

IHG BGLH 100-350A (88/142), 75kW, 2880 Stainless Steel Vertical Pump

Code: 1023978
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour88
Feed height, m142
MaterialAISI 304
Serial number of the pumpBGLH
Country of OriginChina
Input pipe diameter100
Output pipe diameter100
Power capacity, kW75
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Max.temperature, C120
Material of flow channelAISI 304
Weight, kg830
Nom.flow rate, m3/h88
Nom.head, m142
Dimensions, mm680x630x1260
SealMechanical Seal, Carbon-SiC-NBR
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$12 769,53 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
ProducerBTS Engineering
Pump capacity, cu.m/hour88
Feed height, m142
MaterialAISI 304
Serial number of the pumpBGLH
Country of OriginChina
Input pipe diameter100
Output pipe diameter100
Power capacity, kW75
Rate of turn, rpm2 880
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Max.temperature, C120
Material of flow channelAISI 304
Weight, kg830
Nom.flow rate, m3/h88
Nom.head, m142
Dimensions, mm680x630x1260
SealMechanical Seal, Carbon-SiC-NBR
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
