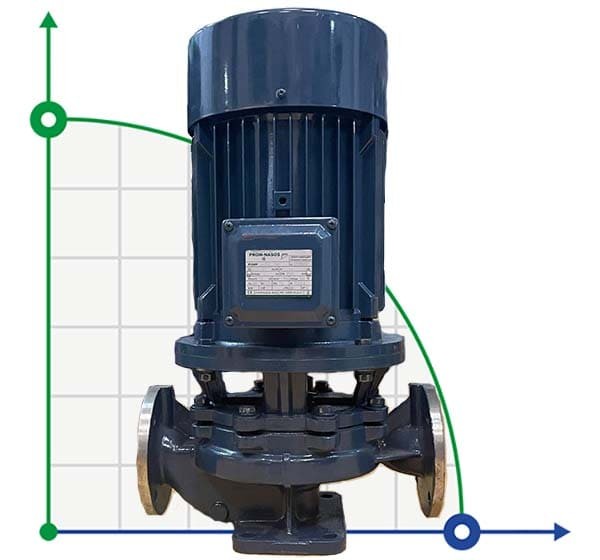

BGLH 300-315A, 55, (650/28), 75kW, 1480 stainless in-line pump with tandem mechanical seal

Code: 1035058
(0 review)
ProducerBTS Engineering
Pump capacity, m3/h650
Feed height, m28
Power capacity, kW75
MaterialAISI 304 stainless steel
Input pipe diameter300
Output pipe diameter300
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C140
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h650
Nom.head, m28
Dimensions, mm1000x670x1480
SealTandem Mchanical Seal
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Serial number of the pumpBGLH
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationsewerage, residue concentrate, apple juice, acids, drains, brew, alcohol, chemistry, bards, food, paints, alkalis, drying
Weight, kg950
Show all features (28)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$17 702 (netto)
Добавить в сравнение
We deliver anywhere in the world
A pump with a tandem mechanical seal for pumping mash, bards, alcohol, residue concentrate, paint, food products. Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller). On a standard BGLH pump, there is a single mechanical seal that works in a pumped medium with a high dry matter content, in contact with a friction pair, which burn and are deposited on the friction pair, creating a crust from flour, sugar, yeast, etc. Upgrading the seal with a chamber for cooling and flushing fluid, we eliminated this kind of problem by supplying water with a pressure exceeding the pressure in the working fluid pump. This seal is used when the supply of the sealing fluid to the seal is impossible. This mechanical seal is absolutely hermetic, but its service life is less than that of a double mechanical seal with a shut-off fluid. In addition, this seal interacts worse with abrasive-containing and crystallizing liquids.
ProducerBTS Engineering
Pump capacity, m3/h650
Feed height, m28
Power capacity, kW75
MaterialAISI 304 stainless steel
Input pipe diameter300
Output pipe diameter300
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.temperature, C140
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h650
Nom.head, m28
Dimensions, mm1000x670x1480
SealTandem Mchanical Seal
Impeller materialAISI 304 stainless steel
Shaft materialAISI 304 stainless steel
Serial number of the pumpBGLH
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationsewerage, residue concentrate, apple juice, acids, drains, brew, alcohol, chemistry, bards, food, paints, alkalis, drying
Weight, kg950
