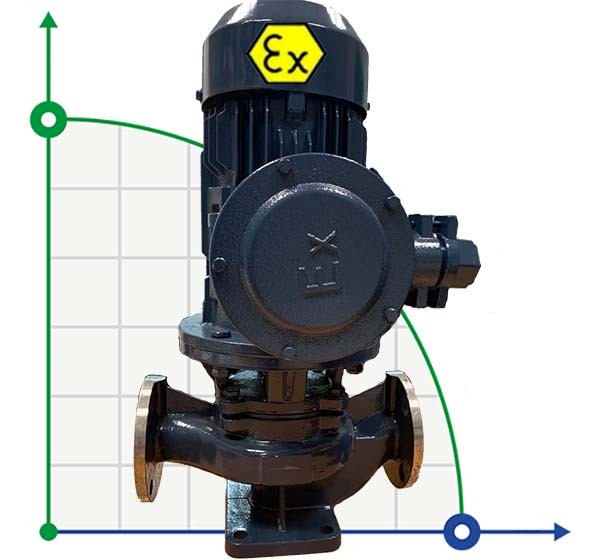

IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump
Click image for a larger view
IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump
IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump
IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump
IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump

IHG BGLHB 150-250 (200/20), 18,5kW, 1480, Ex Stainless Steel Vertical Pump

Code: 1024592
(0 review)
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m20
Power capacity, kW18,5
MaterialAISI 304 stainless steel
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h200
Nom.head, m20
Dimensions, mm700x480x960
SealMechanical Seal, Carbon-SiC-NBR
Serial number of the pumpBGLHB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
Weight, kg300
Show all features (26)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$8 374,41 (netto)
Добавить в сравнение
We deliver anywhere in the world
BGLHB series pumps with Ex motor (explosion-proof version) ATEX is an abbreviation that stands for "ATmosphères EXplosibles" (French for "explosive atmospheres"). For pumping chemically aggressive liquids, saline solutions, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing equipment. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Categories: Centrifugal pump inlineChemical centrifugal pumpPump for stillage, mashPump for gasoline, diesel fuelIn-line pump for water supplyEvaporator pump, evaporatorPump for distillatesPump for UANSolvent pumpBrine PumpPumps for pumping alcoholCIP flushing of the rectification columnPumps for aggressive liquidsCaustic pumpsLye pumpsPump with explosion-proof motor Ex alcohol productsCentrifugal pumps
ProducerBTS Engineering
Pump capacity, cu.m/hour200
Feed height, m20
Power capacity, kW18,5
MaterialAISI 304 stainless steel
Input pipe diameter150
Output pipe diameter150
Rate of turn, rpm1 480
ProtectionIP55
Power supply3х380 V, 50 Hz
Explosion protectionYes
Max.temperature, C120
Material of flow channelAISI 304 stainless steel
Nom.flow rate, m3/h200
Nom.head, m20
Dimensions, mm700x480x960
SealMechanical Seal, Carbon-SiC-NBR
Serial number of the pumpBGLHB
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Type of configurationwith engine
Warranty, months12
Applicationvulture washing, oils, coagulant, caustic, alkalis, acid, paints, abrasive fluids, food, wort, bards
Weight, kg300
