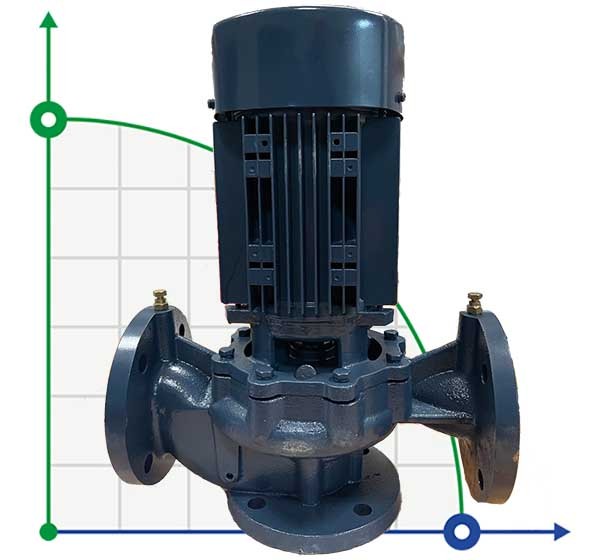

Name: BT 50-220/1,1 pump in-line
Brand: BTS Engineering
SKU: 1019181

Product list

Click image for a larger view

More +3

Code: 1019181

(0 review)

Producer	BTS Engineering
Pump capacity, cu.m/hour	27
Feed height, m	22
Power capacity, kW	1,1
Material	cast iron
Input pipe diameter	DN50
Output pipe diameter	DN50
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	27
Max. head, m	22
Max.temperature, C	120
Dimensions, mm	510Х400Х300
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Serial number of the pump	BT
Country of Origin	China
PumpType	in-line
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Warranty, months	12
Application	water recycling, ethylene glycol, circulation, boiler, hot water, coolant, increasing pressure, water, glaze, water supply, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water
Analogue for	KOLMEKS
Weight, kg	34
Gross weight, kg	39
Height of transport volume, cbm	0,045

Show all features (28)

Documentation

Description BT 50-220/1,1 pump in-line

PT Vertical Inline Pump Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The vertical inline pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural. TECHNICAL DESCRIPTION: - New vertical inline pump - Original design by PURITY (patented) - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case with anti-corrosive coating - Impeller in stainless steel AISI 304 or cast iron - Shaft in stainless steel AISI 304 or galvanized iron - Galvanized counter flange with bolts, nuts and gaskets - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar

Categories: Centrifugal pump inline In-line pump for water supply In-line pumps Wood drying pump

Features BT 50-220/1,1 pump in-line

Producer	BTS Engineering
Pump capacity, cu.m/hour	27
Feed height, m	22
Power capacity, kW	1,1
Material	cast iron
Input pipe diameter	DN50
Output pipe diameter	DN50
Rate of turn, rpm	2 900
Protection	IP55
Power supply	3х380 V, 50 Hz
Max.flow rate, m3/h	27
Max. head, m	22
Max.temperature, C	120
Dimensions, mm	510Х400Х300
Seal	Mechanical Seal, Carbon-SiC-NBR
Impeller material	AISI 304 stainless steel
Serial number of the pump	BT
Country of Origin	China
PumpType	in-line
Drive Type	electric
Installation Type	vertical
Type of configuration	with engine
Warranty, months	12
Application	water recycling, ethylene glycol, circulation, boiler, hot water, coolant, increasing pressure, water, glaze, water supply, heating, DHW, drying, glycol, air conditioning systems, cooling, cooling tower, hot water, ice water, the drying chamber, water
Analogue for	KOLMEKS
Weight, kg	34
Gross weight, kg	39
Height of transport volume, cbm	0,045
