| Producer | FLUIMAC |
| Pump capacity, cu.m/hour | 63 |
| Feed height, m | 80 |
| Material | AL |
| Input pipe diameter | 3" |
| Output pipe diameter | 3" |
| Noise level ,dB | 78 |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 63 |
| Max. head, m | 80 |
| Max.temperature, C | 95 |
| Material of flow channel | AL |
| Max.viscosity, cPs | 55 000 |
| Max.air pressure, bar | 8 |
| Flow rate, l/min | 1050 |
| Max.diameter of solid inclusions, mm | 10 |
| Model | PHOENIX ATEX 1000 |
| Diametr of the product line | 3" |
| Diameter of the pneumatic mainline | 3/4" |
| Material of ball valves | PTFE |
| Diaphragm material at air side | SANTOPRENE |
| Diaphragm material at water side | PTFE |
| Material of valve seat | ALU |
| Dry suction height, m | 5 |
| Suction capacity (NPSH), m | 9,8 |
| Serial number of the pump | PHOENIX ATEX |
| Country of Origin | Italy |
| PumpType | membrane pneumatic |
| Drive Type | pneumatic |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | ammonia, varnish, ash, butane, viscous liquids, oleum, paints, nitric acid, acetic acid, alkalis, saturated amine, urea, carbonate, kaolin suspension, slag, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, ethers, ethylene, phosphoric acid, phosphates, formalin, clays, slip |
| Analogue for | Emec, Jesco Pump, Seko, FWT, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, Injecta, MILTON ROY, Grundfos, ProMinent, Graco Husky, WILDEN, AquaViva, AQUA, AGRAL DDE-160, DUOTEK SANI, DUOTEK FOOD, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, AGRAL DDE-100, AGRAL DDE-300, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, Debem FOODBOXER, Debem BOXER, AlphaDynamic Ruby, AGRAL DDE-600 |
| Weight, kg | 55 |
| Producer | FLUIMAC |
| Pump capacity, cu.m/hour | 63 |
| Feed height, m | 80 |
| Material | AL |
| Input pipe diameter | 3" |
| Output pipe diameter | 3" |
| Noise level ,dB | 78 |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 63 |
| Max. head, m | 80 |
| Max.temperature, C | 95 |
| Material of flow channel | AL |
| Max.viscosity, cPs | 55 000 |
| Max.air pressure, bar | 8 |
| Flow rate, l/min | 1050 |
| Max.diameter of solid inclusions, mm | 10 |
| Model | PHOENIX ATEX 1000 |
| Diametr of the product line | 3" |
| Diameter of the pneumatic mainline | 3/4" |
| Material of ball valves | PTFE |
| Diaphragm material at air side | SANTOPRENE |
| Diaphragm material at water side | PTFE |
| Material of valve seat | ALU |
| Dry suction height, m | 5 |
| Suction capacity (NPSH), m | 9,8 |
| Serial number of the pump | PHOENIX ATEX |
| Country of Origin | Italy |
| PumpType | membrane pneumatic |
| Drive Type | pneumatic |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | ammonia, varnish, ash, butane, viscous liquids, oleum, paints, nitric acid, acetic acid, alkalis, saturated amine, urea, carbonate, kaolin suspension, slag, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, peroxide, ethers, ethylene, phosphoric acid, phosphates, formalin, clays, slip |
| Analogue for | Emec, Jesco Pump, Seko, FWT, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, Injecta, MILTON ROY, Grundfos, ProMinent, Graco Husky, WILDEN, AquaViva, AQUA, AGRAL DDE-160, DUOTEK SANI, DUOTEK FOOD, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, Duotek AF Zone 2 Atex, AGRAL DDE-100, AGRAL DDE-300, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, Debem FOODBOXER, Debem BOXER, AlphaDynamic Ruby, AGRAL DDE-600 |
| Weight, kg | 55 |

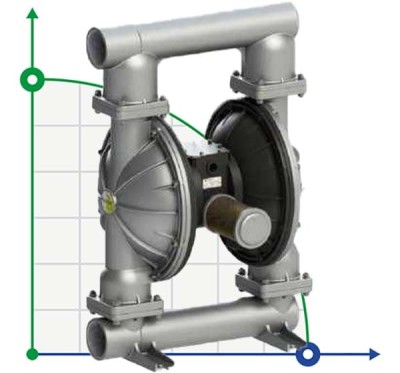

Download instructions, catalog for Pneumatic Membrane Pump PHOENIX P1000 ALU SANTOPRENE ATEX
