Temperature (min), °C | -4 |
Producer | FLUIMAC |
Pump capacity, cu.m/hour | 3.9 |
Feed height, m | 80 |
Material | PP |
Input pipe diameter | 1/2" |
Output pipe diameter | 1/2" |
Noise level ,dB | 72 |
Explosion protection | Yes |
Max.flow rate, m3/h | 3.9 |
Max. head, m | 80 |
Max.temperature, C | 65 |
Material of flow channel | PP |
Max.viscosity, cPs | 20 000 |
Max.air pressure, bar | 8 |
Flow rate, l/min | 65 |
Max.diameter of solid inclusions, mm | 3,5 |
Model | PHOENIX 60 |
Diametr of the product line | 1/2" |
Diameter of the pneumatic mainline | 1/4" |
Material of ball valves | NBR |
Diaphragm material at air side | SANTOPRENE |
Diaphragm material at water side | PTFE |
Material of valve seat | AISI stainless steel |
Dry suction height, m | 5 |
Suction capacity (NPSH), m | 9,8 |
Serial number of the pump | PHOENIX |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | Yes |
Warranty, months | 12 |
Application | ammonia, varnish, ash, paints, oleum, butane, viscous liquids, saturated amine, urea, nitric acid, acetic acid, alkalis, slip, peroxide, carbonate, kaolin suspension, slag, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, ethers, ethylene, phosphoric acid, phosphates, formalin, clays |
Analogue for | Astralpool, AGRAL DDE-300, AGRAL DDE-160, Injecta, Seko, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Sera, AlphaDynamic Ruby, MILTON ROY, Graco Husky, WILDEN, AquaViva, AGRAL DDE-600, Debem BOXER, DELLMECO DM, DUOTEK FOOD, DEPA РМ (Р), DELLMECO DMCX, YAMADA NDP, Debem FOODBOXER, Duotek AF Zone 2 Atex, DUOTEK SANI, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, ProMinent, Grundfos, Emec, AQUA, FWT, Jesco Pump |
Weight, kg | 4,3 |
Temperature (min), °C | -4 |
Producer | FLUIMAC |
Pump capacity, cu.m/hour | 3.9 |
Feed height, m | 80 |
Material | PP |
Input pipe diameter | 1/2" |
Output pipe diameter | 1/2" |
Noise level ,dB | 72 |
Explosion protection | Yes |
Max.flow rate, m3/h | 3.9 |
Max. head, m | 80 |
Max.temperature, C | 65 |
Material of flow channel | PP |
Max.viscosity, cPs | 20 000 |
Max.air pressure, bar | 8 |
Flow rate, l/min | 65 |
Max.diameter of solid inclusions, mm | 3,5 |
Model | PHOENIX 60 |
Diametr of the product line | 1/2" |
Diameter of the pneumatic mainline | 1/4" |
Material of ball valves | NBR |
Diaphragm material at air side | SANTOPRENE |
Diaphragm material at water side | PTFE |
Material of valve seat | AISI stainless steel |
Dry suction height, m | 5 |
Suction capacity (NPSH), m | 9,8 |
Serial number of the pump | PHOENIX |
Country of Origin | Italy |
PumpType | membrane pneumatic |
Drive Type | pneumatic |
Availability of spare parts | Yes |
Warranty, months | 12 |
Application | ammonia, varnish, ash, paints, oleum, butane, viscous liquids, saturated amine, urea, nitric acid, acetic acid, alkalis, slip, peroxide, carbonate, kaolin suspension, slag, phenol, alcohol, reverse osmosis systems, sulfur, hydrogen, ethers, ethylene, phosphoric acid, phosphates, formalin, clays |
Analogue for | Astralpool, AGRAL DDE-300, AGRAL DDE-160, Injecta, Seko, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Sera, AlphaDynamic Ruby, MILTON ROY, Graco Husky, WILDEN, AquaViva, AGRAL DDE-600, Debem BOXER, DELLMECO DM, DUOTEK FOOD, DEPA РМ (Р), DELLMECO DMCX, YAMADA NDP, Debem FOODBOXER, Duotek AF Zone 2 Atex, DUOTEK SANI, AGRAL DDE-100, AGRAL DDE-60, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, ProMinent, Grundfos, Emec, AQUA, FWT, Jesco Pump |
Weight, kg | 4,3 |

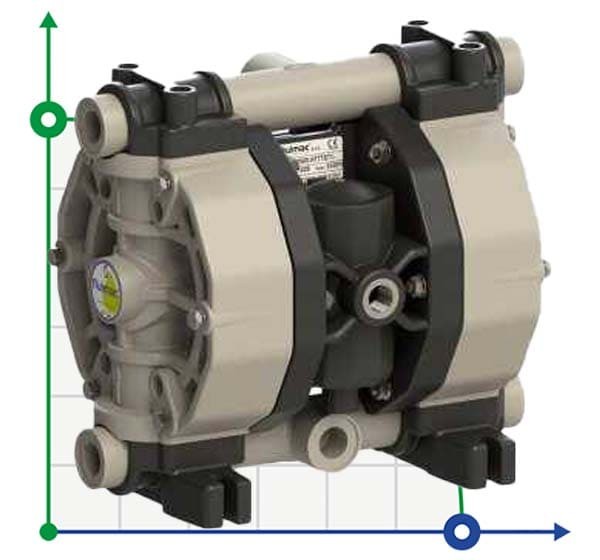

Download instructions, catalog for Pneumatic diaphragm pump PHOENIX P60 PP SANTOPRENE+PTFE, 65 l/min for acetic acid
