Name: Seko Duotek AF400 PVDF pneumatic diaphragm pump
Brand: SEKO
SKU: 1039493

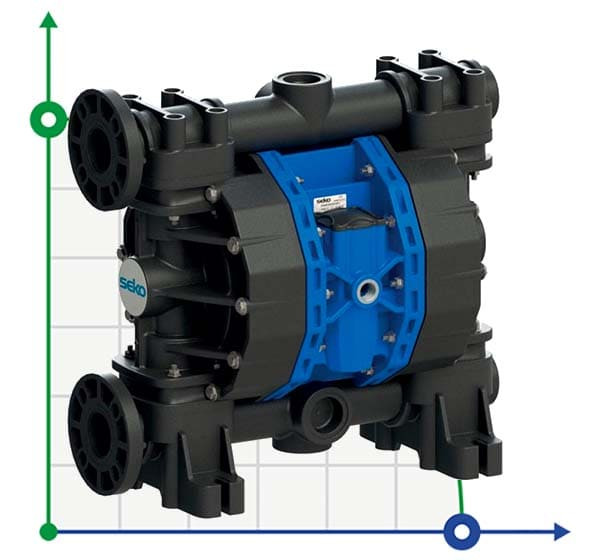

Seko Duotek AF400 PVDF pneumatic diaphragm pump

Click image for a larger view

Code: 1039493

Producer	SEKO
Pump capacity, m3/h	22.8
Feed height, m	80
Material	PVDF
Input pipe diameter	1" 1/2
Output pipe diameter	1" 1/2
Noise level ,dB	75
Explosion protection	Yes
ATEX standard	EX II 3/3 GD c IIB T 135°C
Max.flow rate, m3/h	22.8
Max. head, m	80
Max.temperature, C	95
Max.viscosity, cPs	40 000
Max.air pressure, bar	8
Flow rate, l/min	380
Max.diameter of solid inclusions, mm	8
Diametr of the product line	1" 1/2
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	5
Suction capacity (NPSH), m	9,8
Serial number of the pump	Duotek
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Warranty, months	12
Application	ammonia, paints, ash, butane, viscous liquids, varnish, oleum, slip, saturated amine, nitric acid, acetic acid, alkalis, clays, sulfur, carbonate, urea, slag, phenol, alcohol, reverse osmosis systems, hydrogen, peroxide, ethers, ethylene, phosphoric acid, phosphates, formalin, kaolin suspension
Analogue for	MILTON ROY, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, Graco Husky, AGRAL DDE-160, WILDEN, AquaViva, Injecta, AGRAL DDE-300, AGRAL DDE-100, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, AGRAL DDE-60, AGRAL DDE-600, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, Debem FOODBOXER, Debem BOXER, AlphaDynamic Ruby, ProMinent, Grundfos, Emec, AQUA, FWT, Jesco Pump
Weight, kg	22

Show all features (28)

Description Seko Duotek AF400 PVDF pneumatic diaphragm pump

The SEKO Duotek Series double diaphragm air pumps provide versatility and reliability for all applications. Pneumatic diaphragm pumps have long been recognized as the most flexible pumps in the industry for pumping complex liquids at relatively low pressures and costs. The possibilities of their application are almost limitless. SEKO pumps come in a variety of sizes and are made from a variety of materials. The pumps allow you to pump liquids of almost any type, from highly corrosive acids to high-viscosity paints and adhesives, food and beverages.

Categories: Diaphragm pump with pneumatic / electric drive Pump for viscous products Pumps for calcium hydroxide Ca (OH) 2 (milk of lime)Glycerin pumps Acid pumps Pumps for varnish, paint Hydrochloric acid pumps Slurry, clay and ceramic slurry pumps Pneumatic Diaphragm Pumps

Features Seko Duotek AF400 PVDF pneumatic diaphragm pump

Producer	SEKO
Pump capacity, m3/h	22.8
Feed height, m	80
Material	PVDF
Input pipe diameter	1" 1/2
Output pipe diameter	1" 1/2
Noise level ,dB	75
Explosion protection	Yes
ATEX standard	EX II 3/3 GD c IIB T 135°C
Max.flow rate, m3/h	22.8
Max. head, m	80
Max.temperature, C	95
Max.viscosity, cPs	40 000
Max.air pressure, bar	8
Flow rate, l/min	380
Max.diameter of solid inclusions, mm	8
Diametr of the product line	1" 1/2
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	5
Suction capacity (NPSH), m	9,8
Serial number of the pump	Duotek
Country of Origin	Italy
PumpType	membrane pneumatic
Drive Type	pneumatic
Warranty, months	12
Application	ammonia, paints, ash, butane, viscous liquids, varnish, oleum, slip, saturated amine, nitric acid, acetic acid, alkalis, clays, sulfur, carbonate, urea, slag, phenol, alcohol, reverse osmosis systems, hydrogen, peroxide, ethers, ethylene, phosphoric acid, phosphates, formalin, kaolin suspension
Analogue for	MILTON ROY, Debem SANIBOXER, PRODOSE, DOSITEC, Milwaukee, Astralpool, Sera, Graco Husky, AGRAL DDE-160, WILDEN, AquaViva, Injecta, AGRAL DDE-300, AGRAL DDE-100, DEPA РМ (Р), DELLMECO DMCX, DELLMECO DM, YAMADA NDP, AGRAL DDE-60, AGRAL DDE-600, AGRAL DDE-030, DEPA L, DEPA DB, DEPA М, Debem FOODBOXER, Debem BOXER, AlphaDynamic Ruby, ProMinent, Grundfos, Emec, AQUA, FWT, Jesco Pump
Weight, kg	22
